PRODUCT INFORMATION
Product Overview
Revision scope: These specifications describe 1747-L533/E (Series E). Check the corresponding technical data before specifying another hardware series.

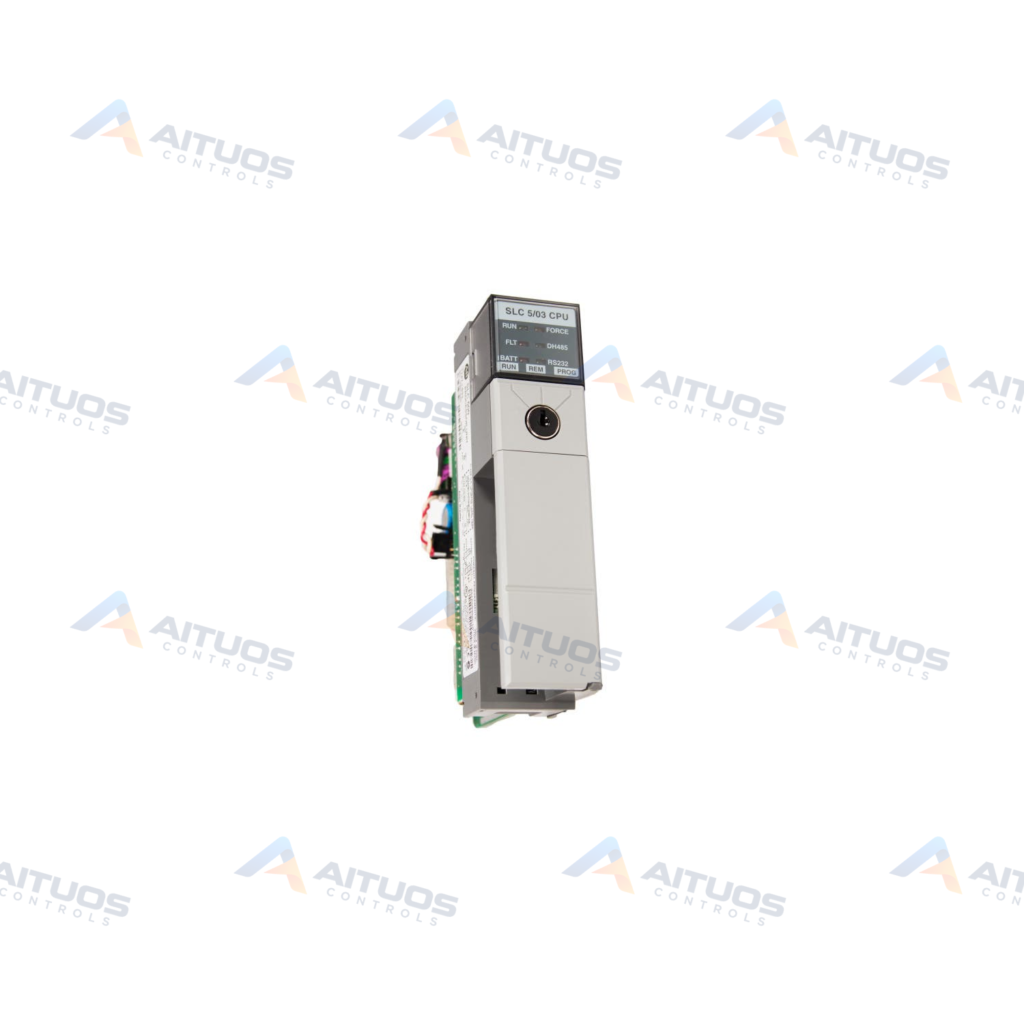

The Allen-Bradley 1747-L533 SLC 500 Controller provides thirty-two thousand words of total user memory. The memory architecture allocates twenty-eight thousand words for program instructions and data tables. The remaining four thousand words serve dedicated data storage requirements. The controller uses battery-backed random-access memory for volatile program data retention.
This modular unit installs into an open-style SLC 500 chassis backplane. It addresses up to three local chassis and thirty module slots total. Channel zero provides RS-232 communication supporting DF1 or ASCII protocols. Channel one provides DH-485 network connectivity for peripheral devices. RSLogix 500 software manages system programming and diagnostics.
TECHNICAL DATA
Technical Specifications
These specifications describe 1747-L533/E (Series E). Check the corresponding technical data before specifying another hardware series.
| Parameter | Specification |
|---|
| Specification | Value |
|---|
| User Memory | 32K words total (28K words data/program; 4K words data only) |
|---|
| Memory Type | Battery-backed RAM; Flash EEPROM backup (optional 1747-M13 module) |
|---|
| Digital I/O Capacity | 4,096 Inputs / 4,096 Outputs (max); 8,192 digital I/O total |
|---|
| Analog I/O Capacity | 480 points (max, local) |
|---|
| Communication Ports | Channel 0: RS-232 (DF1 full/half-duplex or ASCII); Channel 1: DH-485 |
|---|
| Backplane Current Draw | 500 mA at 5V DC; 175 mA at 24V DC |
|---|
| Supply Voltage | 5–24V DC (via backplane) |
|---|
| Program Scan Time | 1 ms per 1K words (typical) |
|---|
| I/O Scan Time | 0.225 ms (typical) |
|---|
| Bit Execution Time (XIC) | 0.44 µs |
|---|
| Local I/O Chassis (max) | 3 chassis; 30 module slots per chassis (max) |
|---|
| Power Supply Compatibility | 1746-P1 through 1746-P7 |
|---|
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
|---|
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
|---|
| Operating Shock | 30G |
|---|
| Vibration (Displacement) | 0.015 in. peak-to-peak at 5–57 Hz |
|---|
| Vibration (Acceleration) | 2.5G at 57–2000 Hz |
|---|
| Heat Dissipation | 2.90 W (minimum) |
|---|
| Enclosure / Mounting | Open-style; chassis mount (modular) |
|---|
| Status Indicators (LEDs) | Run, CPU Fault, Forced I/O, Battery Low, RS-232, DH-485 |
|---|
| Certifications | UL Listed, CE, C-Tick, GOST, KC; Class I Groups A, B, C, D Div. 2 |
|---|
| Programming Software | RSLogix 500 |
|---|
| Lifecycle Status | Discontinued (March 31, 2024) |
|---|
TECHNICAL INFORMATION
Order Information
| Revision Part # | Also known as |
|---|
| 1747-L533 Ser E | 1747-L533/E, Series E |
TECHNICAL INFORMATION
Features
- Executes basic bit instructions in 0.44 microseconds.
- Controls up to 8,192 total digital I/O points across chassis configurations.
- Supports up to 480 local analog input and output channels.
- Includes dual built-in communication ports for RS-232 and DH-485 networks.
- Features LED indicators for Run, CPU Fault, Forced I/O, and Battery Low.
- Accepts optional 1747-M13 flash EEPROM memory modules for program backup.
TECHNICAL INFORMATION
Connections / Interfaces
- Channel 0 provides RS-232 communication using DF1 full-duplex, half-duplex, or ASCII modes.
- Channel 1 provides a DH-485 communication port.
- The module draws 500 mA at 5V DC from the backplane.
- The unit also draws 175 mA at 24V DC from the backplane.
TECHNICAL INFORMATION
Installation Guidelines
- The module mounts into an open-style SLC 500 modular chassis.
- The system supports up to three local chassis and thirty module slots.
- Maintain operating temperatures between 0°C and 60°C within the enclosure.
- The controller dissipates a minimum of 2.90 W of heat during operation.
TECHNICAL INFORMATION
Compatibility
- Operates with 1746-P1 through 1746-P7 power supply units.
- Requires Rockwell Automation RSLogix 500 programming software.
- Accepts optional 1747-M13 flash EEPROM memory modules.
- Connects to SLC 500 local modular chassis systems.
TECHNICAL INFORMATION
Lifecycle / Replacement Information
- Rockwell Automation officially discontinued the 1747-L533 controller on March 31, 2024.
- Hardware availability relies on existing channel stock and spare parts inventory.
TECHNICAL INFORMATION
Compliance and Certifications
- UL Listed for industrial control equipment.
- Certified under CE, C-Tick, GOST, and KC compliance standards.
- Rated for Class I, Groups A, B, C, D, Division 2 locations.
COMPATIBILITY
Compatibility & Replacement
COMPATIBLE MODELSOperates with 1746-P1 through 1746-P7 power supply units. Requires Rockwell Automation RSLogix 500 programming software. Accepts optional 1747-M13 flash EEPROM memory modules. Connects to SLC 500 local modular chassis systems.
Verify compatibility against the exact Part Number, revision and manufacturer documentation before ordering.
PART VERIFICATION
Before You Order
Industrial automation parts can share similar model names, suffixes and revisions. Confirm the complete manufacturer Part Number before purchase.
01Check Part NumberMatch the complete ordering code on the existing unit.
02Confirm RevisionCheck suffix, hardware or firmware when applicable.
03Send a Label PhotoWe can review a clear label photo when identification is uncertain.
ORDERING PROCESS
From RFQ to Dispatch
1Submit Part Number2Verify Product Identity3Confirm Stock & Condition4Issue Quotation5Dispatch & Tracking
PRODUCT FAQ
Frequently Asked Questions
What programming software supports the 1747-L533 controller?
The controller requires Rockwell Automation RSLogix 500 software for ladder logic programming and diagnostics.
What communication ports are available on the 1747-L533?
The controller includes Channel 0 for RS-232 communications and Channel 1 for DH-485 networking.
What is the official lifecycle status of the Allen-Bradley 1747-L533?
Rockwell Automation discontinued the 1747-L533 on March 31, 2024. Sourcing depends on available inventory.
How is the memory allocated in the 1747-L533?
Total memory is 32K words, with 28K words for program/data and 4K words for data only.
