PRODUCT INFORMATION
Product Overview

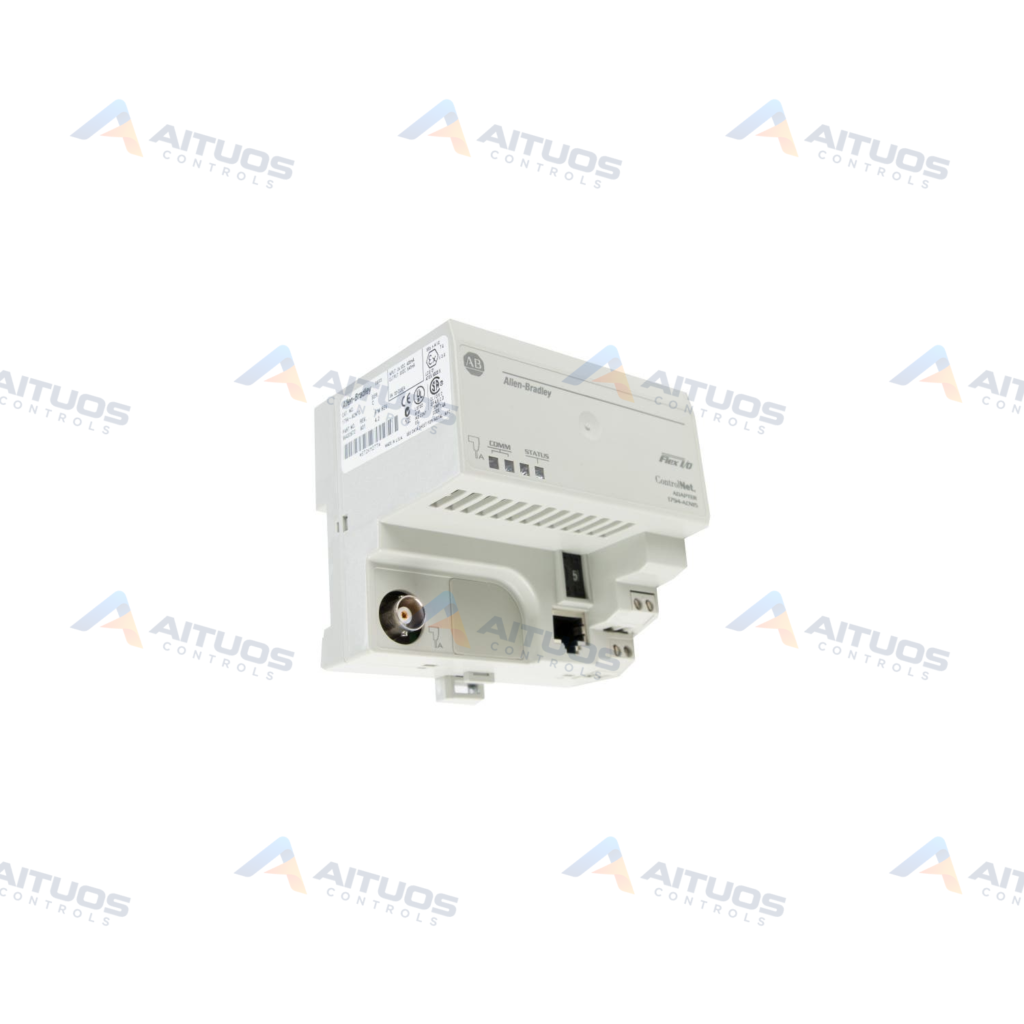

The Allen-Bradley 1794-ACN15 is a FLEX I/O ControlNet Adaptor. It interfaces up to eight modular I/O units within the Flex I/O 1794 platform. The unit operates with an input supply voltage ranging between 19.2 and 31.2 volts DC. Normal operation requires a steady input current of 400 mA.
The adaptor enables network communication at a transfer rate of 5 Mbps. It delivers 640 mA of output current at 5 volts DC to connected modules. Maximum power dissipation equals 3.4 Watts at an input level of 19.2 volts DC. An integrated rotary dial provides physical node selection during hardware setup.
TECHNICAL DATA
Technical Specifications
| Parameter | Specification |
|---|
| Product Line | Flex I/O 1794 |
|---|
| UPC | 612598180608 |
|---|
| Weight | 1.06 lbs (0.48 kg) |
|---|
| Node Selection Dial | Included |
|---|
| I/O Capacity | 8 Modules |
|---|
| Input Supply Voltage | 19.2 to 31.2 Volts DC, 400 mA |
|---|
| Output Supply Voltage | Inrush Current 5 Volts DC, 640 mA: 14 Amps for 2 ms |
|---|
| Communication Rate | 5 Mbps |
|---|
| Maximum Power Dissipation | 3.4 Watts at 19.2 Volts DC |
|---|
| Terminal Screw Torque | 0.8 Nm |
|---|
| Enclosure Type | No Enclosure |
|---|
| Operating Temperature | -25 to 55 Degrees Celsius |
|---|
| Non-Operating Temperature | -40 to 85 Degrees Celsius |
|---|
| Non-Condensing Relative Humidity | 5 to 95% |
|---|
| Operating Shock | 30 G |
|---|
TECHNICAL INFORMATION
Features
- Provides a fixed network communication rate of 5 Mbps.
- Supports an operational capacity of up to eight I/O modules.
- Supplies 640 mA backplane output current at 5 volts DC.
- Includes an integrated node selection dial for address setup.
- Withstands operational shock levels up to 30 G.
- Functions across an operating temperature range of -25 to 55 degrees Celsius.
TECHNICAL INFORMATION
Connections / Interfaces
- Screw terminals require a tightening torque of 0.8 Nm for wiring connections.
- Delivers up to 640 mA output current to connected modules.
TECHNICAL INFORMATION
Installation Guidelines
- Tighten wiring screws to a torque specification of 0.8 Nm.
- Maintain operating ambient temperatures between -25 and 55 degrees Celsius.
- Maintain relative humidity within 5 to 95 percent non-condensing during operation.
- Install with consideration for the open-style enclosure specification.
TECHNICAL INFORMATION
Configuration Guidelines
- Set the network address using the built-in node selection dial.
TECHNICAL INFORMATION
Compatibility
- Compatible with Allen-Bradley Flex I/O 1794 series hardware modules.
TECHNICAL RESOURCES
Documentation
COMPATIBILITY
Compatibility & Replacement
COMPATIBLE MODELSCompatible with Allen-Bradley Flex I/O 1794 series hardware modules.
Verify compatibility against the exact Part Number, revision and manufacturer documentation before ordering.
PART VERIFICATION
Before You Order
Industrial automation parts can share similar model names, suffixes and revisions. Confirm the complete manufacturer Part Number before purchase.
01Check Part NumberMatch the complete ordering code on the existing unit.
02Confirm RevisionCheck suffix, hardware or firmware when applicable.
03Send a Label PhotoWe can review a clear label photo when identification is uncertain.
ORDERING PROCESS
From RFQ to Dispatch
1Submit Part Number2Verify Product Identity3Confirm Stock & Condition4Issue Quotation5Dispatch & Tracking
PRODUCT FAQ
Frequently Asked Questions
What is the module capacity of the 1794-ACN15 adaptor?
The adaptor supports up to eight modules within the Flex I/O 1794 system.
What is the communication rate of the 1794-ACN15?
The 1794-ACN15 operates at a network communication rate of 5 Mbps.
What are the input power specifications for the 1794-ACN15?
It operates from 19.2 to 31.2 volts DC and draws 400 mA current.
What is the market reference price for the 1794-ACN15?
Observed market pricing is approximately $148 for refurbished units. This figure is an indicative market reference only. It is not a final quotation.
