PRODUCT INFORMATION
Product Overview

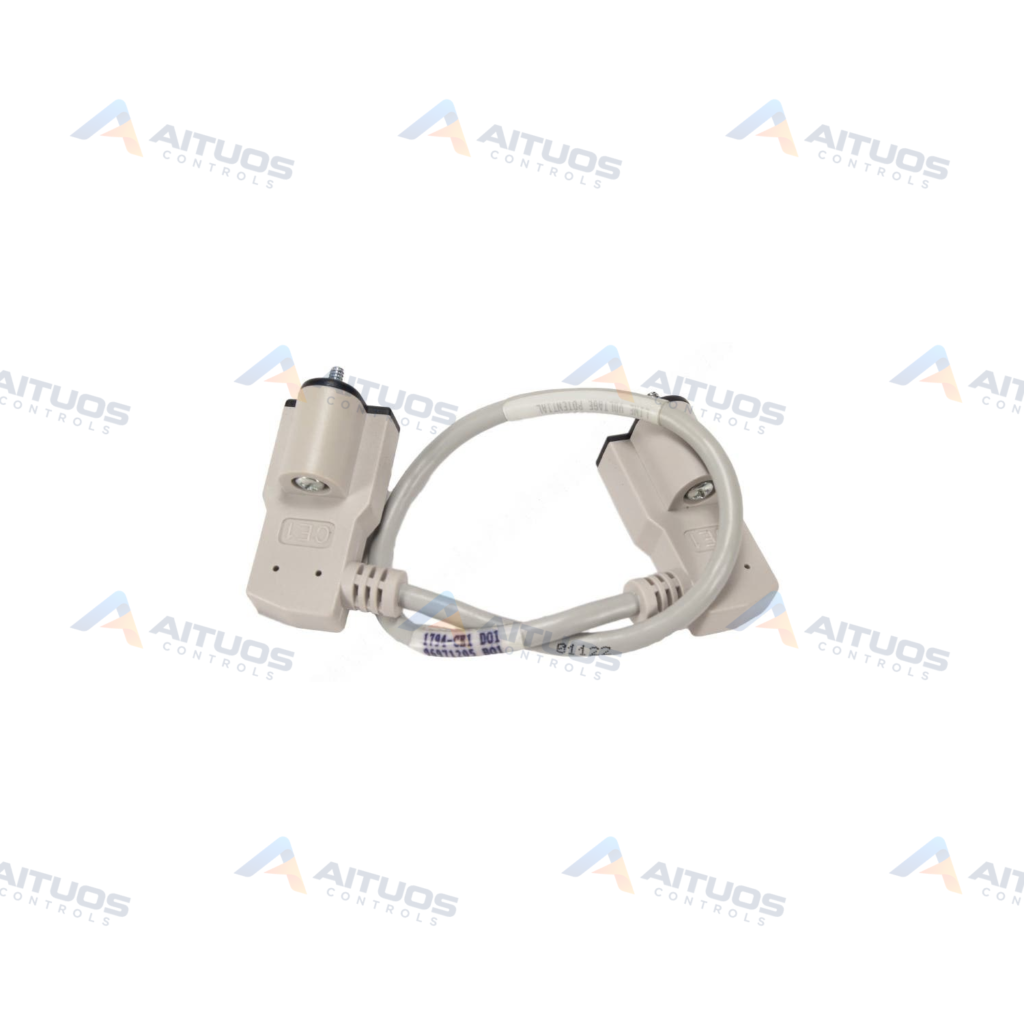

The Allen-Bradley 1794-CE1 is a FLEX I/O extender cable designed for industrial interconnect setups. It connects FLEX I/O adapters and terminal base units across split DIN rail layouts. The cable assembly provides a length of 0.3 meters, which corresponds to 1 foot. Male 15-pin D-shell connectors terminate both cable ends to ensure secure mechanical connections.
Integrated connector shielding protects signal integrity from external electromagnetic interference. The cable operates across temperatures from 0 to 60 degrees Celsius. Storage tolerance extends from -40 to 85 degrees Celsius. Mechanical ratings permit operating shock up to 30g and operational vibration to 5g. The non-condensing relative humidity rating spans from 5 to 95 percent.
TECHNICAL DATA
Technical Specifications
| Parameter | Specification |
|---|
| Product Line | Flex I/O 1794 |
|---|
| UPC | 612598129072 |
|---|
| Weight | 0.44 lbs (0.20 kg) |
|---|
| Input/Output Compatibility | FLEX I/O adapters and terminal bases |
|---|
| Cable Length | 0.3 m (1 ft) |
|---|
| Connector Type | 15-pin D-shell male-to-male |
|---|
| Shielded Connector | Yes |
|---|
| Operating Temperature | 0 to 60 °C (32 to 140 °F) |
|---|
| Humidity Range | 5 to 95% non-condensing |
|---|
| Storage Temperature | -40 to 85 °C |
|---|
| Operating Shock | 30g peak acceleration |
|---|
| Non-Operating Shock | 50g peak acceleration |
|---|
| Vibration | 5g |
|---|
TECHNICAL INFORMATION
Features
- Measures 0.3 meters (1 foot) for compact cabinet interconnections.
- Terminated with dual 15-pin D-shell male connectors.
- Features shielded connectors to minimize electromagnetic interference.
- Supports 30g operating shock and 50g non-operating shock limits.
- Resists mechanical vibration up to 5g during active operation.
TECHNICAL INFORMATION
Applications
- Interconnection between Allen-Bradley FLEX I/O adapters and terminal bases.
- Extension of FLEX I/O backplane communications across adjacent DIN rail rows.
- Control cabinets requiring short interconnect routing in compact enclosures.
TECHNICAL INFORMATION
Connections / Interfaces
- Equipped with a 15-pin male D-shell connector at each end.
- Connects directly into female expansion ports on FLEX I/O terminal bases and adapters.
TECHNICAL INFORMATION
Installation Guidelines
- Route cable away from high-voltage power lines inside the control panel.
- Secure D-shell connector fasteners firmly to prevent accidental disconnection.
- Do not bend the cable beyond manufacturer bend limits during installation.
TECHNICAL INFORMATION
Compatibility
- Compatible with Allen-Bradley FLEX I/O terminal bases and communication adapters.
TECHNICAL RESOURCES
Documentation
COMPATIBILITY
Compatibility & Replacement
COMPATIBLE MODELSCompatible with Allen-Bradley FLEX I/O terminal bases and communication adapters.
Verify compatibility against the exact Part Number, revision and manufacturer documentation before ordering.
PART VERIFICATION
Before You Order
Industrial automation parts can share similar model names, suffixes and revisions. Confirm the complete manufacturer Part Number before purchase.
01Check Part NumberMatch the complete ordering code on the existing unit.
02Confirm RevisionCheck suffix, hardware or firmware when applicable.
03Send a Label PhotoWe can review a clear label photo when identification is uncertain.
ORDERING PROCESS
From RFQ to Dispatch
1Submit Part Number2Verify Product Identity3Confirm Stock & Condition4Issue Quotation5Dispatch & Tracking
PRODUCT FAQ
Frequently Asked Questions
What is the function of the Allen-Bradley 1794-CE1 cable?
The 1794-CE1 extends the FLEX I/O backplane bus between adapters and terminal bases across adjacent DIN rails.
What connectors are used on the 1794-CE1 extender cable?
The cable features 15-pin D-shell male connectors on both ends with integrated shielding.
What is the length of the 1794-CE1 cable?
The total cable length is 0.3 meters, which equals 1 foot.
What is the typical market reference price for the 1794-CE1?
Market observations show reference pricing from $108.00 to $174.00 USD. These figures are indicative market reference pricing only and are not a final quotation.
