PRODUCT INFORMATION
Product Overview

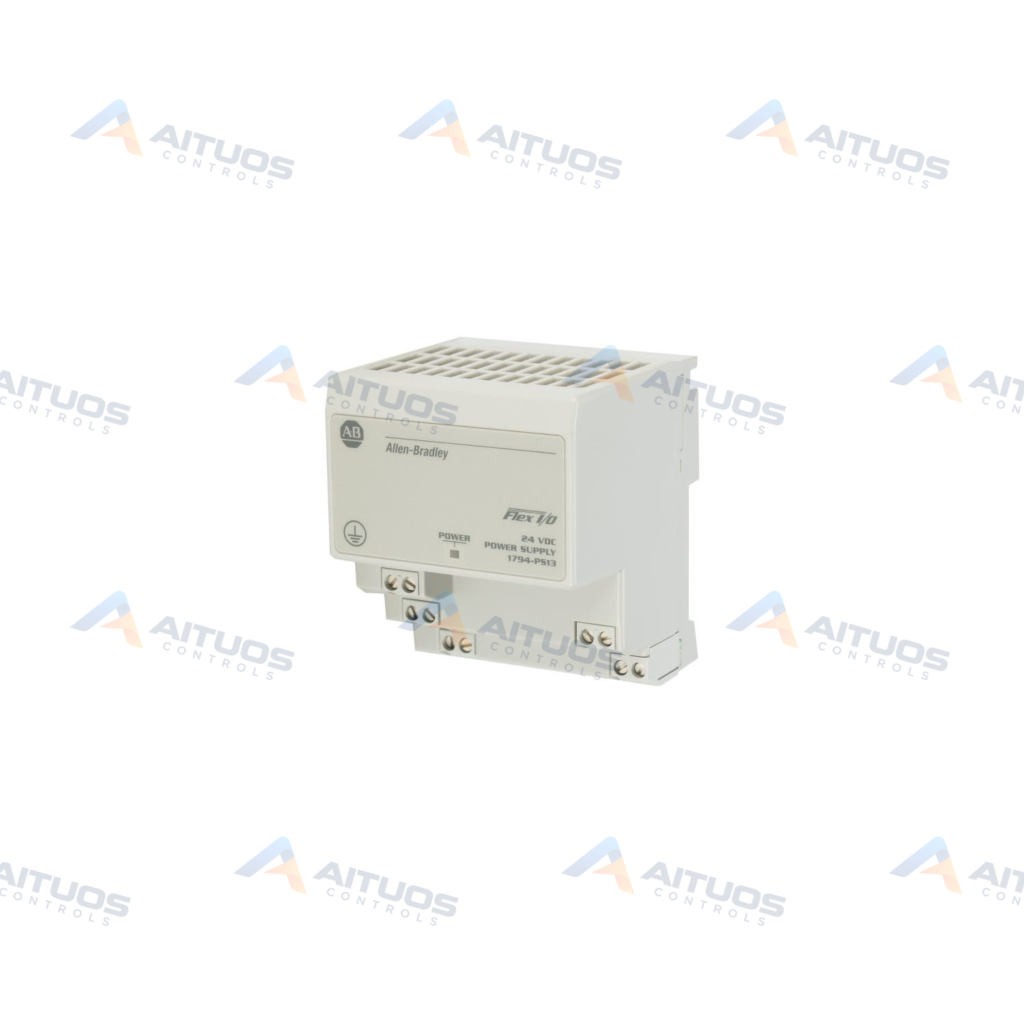

The Allen-Bradley 1794-PS13 is a FLEX I/O power supply module. It converts an input range of 85 to 264V AC into a 24V DC nominal output. The module provides up to 1.3 A of output current and delivers 31.2 Watts of power. Its operating input frequency spans from 47 to 63 Hz.
This open-type module provides sufficient power surge capability to drive up to four FLEX I/O adapters. It maintains an output voltage regulation range between 20.4 and 27.6V DC. An integrated indicator illuminates green when the output voltage stays between 20.4V DC and 28V DC. The supply shuts down if current exceeds 1.4 A or overvoltage reaches 35V DC.
TECHNICAL DATA
Technical Specifications
| Parameter | Specification |
|---|
| Product Line | Flex I/O 1794 |
|---|
| UPC | 612598204847 |
|---|
| Weight | 0.56 lbs (0.26 kg) |
|---|
| Thermal Dissipation | 23.9 BTU/hr |
|---|
| Output Current | 1.3 A |
|---|
| Product Description | Flex I/O Power Supply |
|---|
| Input Voltage range | 85-264VAC |
|---|
| Input Frequency range | 47-63 Hz |
|---|
| Nominal input voltage | 120V AC, 50/60 Hz; 0.6 A max. 230V AC, 50/60 Hz; 0.42 A max. |
|---|
| Maximum input current | 0.7 A |
|---|
| Output power | 31.2 Watts |
|---|
| Output surge | Sufficient to drive 4 adapters |
|---|
| Overcurrent protection | 1.4 A |
|---|
| Power dissipation, max | 7 W |
|---|
| Supply Voltage nom. | 230V AC, 47-63Hz, 0.6A max. |
|---|
| Voltage Range | 85-265V AC |
|---|
| Input Current | 0.7 max. |
|---|
| Output Voltage nom. | 24V DC |
|---|
| Output Voltage Range | 20.4-27.6V DC |
|---|
| Minimum Load | 0mA |
|---|
| Overvoltage Protection | 35V DC |
|---|
| Isolation Voltage | 2500V DC |
|---|
TECHNICAL INFORMATION
Features
- Delivers a nominal 24V DC output rated at 1.3 A and 31.2 Watts.
- Accepts a wide universal AC input voltage range from 85 to 264V AC.
- Provides surge capacity sufficient to power up to four FLEX I/O communication adapters.
- Includes internal overvoltage protection set at 35V DC and overcurrent shutdown at 1.4 A.
- Features electrical isolation rated at 2500V DC between input and output circuits.
- Supports daisy chaining of the DC power output to adjacent modules and adapters.
TECHNICAL INFORMATION
Applications
- Supplying 24V DC field-side and logic power to Allen-Bradley FLEX I/O terminal bases.
- Powering communication adapters in distributed industrial control enclosures.
- Operating mixed AC and DC I/O module configurations within automation control racks.
TECHNICAL INFORMATION
Connections / Interfaces
- Screw-clamp input terminals accommodate line, neutral, and ground AC wiring.
- DC output terminal connections support daisy-chain wiring to distributed adapter modules.
- Compatible with solid or stranded copper conductors sized from 0.34 to 2.5 mm² (22-12 AWG).
TECHNICAL INFORMATION
Installation Guidelines
- Install the unit in an enclosure that provides appropriate environmental protection.
- Use copper wiring rated for 75 °C (167 °F) or higher with insulation thickness up to 1.2 mm.
- Tighten terminal block connection screws to a torque of 0.8 Nm (7 lb-in).
- Maintain Category 2 wiring practices to prevent electrical interference.
TECHNICAL INFORMATION
Configuration Guidelines
- Verify that the combined adapter and module load current does not exceed 1.3 A continuous.
- Check that the status LED shows green, verifying output voltage sits between 20.4V and 28V DC.
TECHNICAL INFORMATION
Compatibility
- Allen-Bradley FLEX I/O communication adapters and terminal base units.
- FLEX I/O digital and analog input/output expansion modules.
TECHNICAL RESOURCES
Documentation
COMPATIBILITY
Compatibility & Replacement
COMPATIBLE MODELSAllen-Bradley FLEX I/O communication adapters and terminal base units. FLEX I/O digital and analog input/output expansion modules.
Verify compatibility against the exact Part Number, revision and manufacturer documentation before ordering.
PART VERIFICATION
Before You Order
Industrial automation parts can share similar model names, suffixes and revisions. Confirm the complete manufacturer Part Number before purchase.
01Check Part NumberMatch the complete ordering code on the existing unit.
02Confirm RevisionCheck suffix, hardware or firmware when applicable.
03Send a Label PhotoWe can review a clear label photo when identification is uncertain.
ORDERING PROCESS
From RFQ to Dispatch
1Submit Part Number2Verify Product Identity3Confirm Stock & Condition4Issue Quotation5Dispatch & Tracking
PRODUCT FAQ
Frequently Asked Questions
What is the primary function of the Allen-Bradley 1794-PS13?
It converts 85-264V AC utility power into a regulated 24V DC supply for FLEX I/O systems.
How many adapters can one 1794-PS13 power module drive?
The module has surge capacity designed to drive up to four FLEX I/O communication adapters.
What does the green indicator light on the 1794-PS13 indicate?
The green light confirms that the DC output voltage is operating normally between 20.4V and 28V DC.
What is the reference price for the 1794-PS13?
Observed market reference pricing is approximately $109.00 USD. This figure is an indicative reference price only and not a final quotation.
