PRODUCT INFORMATION
Product Overview

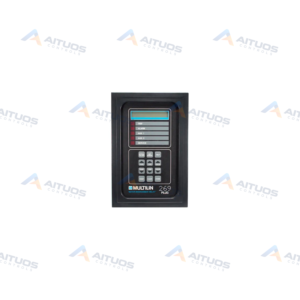

The General Electric 269PLUS-10C-120 is a Multilin series motor management relay engineered for AC motor protection. This unit monitors electrical parameters and safeguards motors, driven mechanical equipment, and operational systems. Configuration setpoints, learned parameters, pre-trip data, and historical operating records are saved directly in non-volatile memory. Stored operational statistics include total motor starts, elapsed running hours, and historical trip events.
The 10C designation specifies factory configuration for 10 Ohm copper RTD temperature sensor inputs. The 120 designation indicates a rated nominal control power supply of 120 VAC or 125 VDC. Integrated firmware self-test routines continually check relay health and trigger an alarm indicator if malfunctions occur. Users can configure custom overload protection curves or select between eight standard curves for tailored motor tripping profiles.
TECHNICAL DATA
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer Location | Markham, Ontario, Canada |
|---|
| Software | EnerVista 269 |
|---|
| User Manual | 1601-0013-E4 |
|---|
| Dimensions | approx. 289mm H, 192 mm L, 121 mm W |
|---|
| Weight | 5lb, 14oz |
|---|
| RTD Inputs Sensor Types | 10 Ω copper, 100 Ω nickel, 120 Ω nickel, 100 Ω platinum |
|---|
TECHNICAL INFORMATION
Features
- Dedicated 10 Ohm copper RTD sensor inputs for thermal monitoring.
- Rated control power input accepting 120 VAC or 125 VDC.
- Non-volatile storage for parameters, pre-trip logs, and operating history.
- Continuous internal firmware self-test routines with dedicated alarm annunciation.
- Eight standard overload curves alongside a configurable custom overload curve feature.
- Integration support with external Multilin meters for extended voltage and power protection.
TECHNICAL INFORMATION
Applications
- Three-phase AC industrial motor management and thermal monitoring.
- Mechanical motor and pump asset protection within automated systems.
- Industrial control panels operating on 120 VAC or 125 VDC control power.
TECHNICAL INFORMATION
Connections / Interfaces
- Wiring terminals configured for 10 Ohm copper RTD temperature sensors.
- Control power input terminals accepting 120 VAC or 125 VDC sources.
TECHNICAL INFORMATION
Installation Guidelines
- Mount the relay unit in an enclosure matching environmental protection requirements.
- Connect 10 Ohm copper RTD inputs using designated wiring terminals.
- Verify control supply voltage matches the 120 VAC or 125 VDC specification before energizing.
TECHNICAL INFORMATION
Configuration Guidelines
- Configure protection setpoints and overload curves via EnerVista 269 software.
- Select either an established standard curve or program custom overload breakpoints.
- Review user manual 1601-0013-E4 for detailed parameter mapping and wiring schematics.
TECHNICAL INFORMATION
Compatibility
- Compatible with GE Multilin power and voltage metering instruments.
- Supported by EnerVista 269 software for setup and monitoring.
COMPATIBILITY
Compatibility & Replacement
COMPATIBLE MODELSCompatible with GE Multilin power and voltage metering instruments. Supported by EnerVista 269 software for setup and monitoring.
Verify compatibility against the exact Part Number, revision and manufacturer documentation before ordering.
PART VERIFICATION
Before You Order
Industrial automation parts can share similar model names, suffixes and revisions. Confirm the complete manufacturer Part Number before purchase.
01Check Part NumberMatch the complete ordering code on the existing unit.
02Confirm RevisionCheck suffix, hardware or firmware when applicable.
03Send a Label PhotoWe can review a clear label photo when identification is uncertain.
ORDERING PROCESS
From RFQ to Dispatch
1Submit Part Number2Verify Product Identity3Confirm Stock & Condition4Issue Quotation5Dispatch & Tracking
PRODUCT FAQ
Frequently Asked Questions
What do the 10C and 120 designations mean in the 269PLUS-10C-120 part number?
The 10C code indicates 10 Ohm copper RTD inputs. The 120 code indicates a 120 VAC or 125 VDC control voltage.
Does the 269PLUS-10C-120 lose recorded trip data if control power drops out?
No. Operating hours, motor starts, trip logs, and programmed setpoints are preserved in non-volatile memory.
Which programming software is used with the 269PLUS-10C-120 motor management relay?
The relay uses EnerVista 269 software alongside reference user manual 1601-0013-E4.
