Product Overview

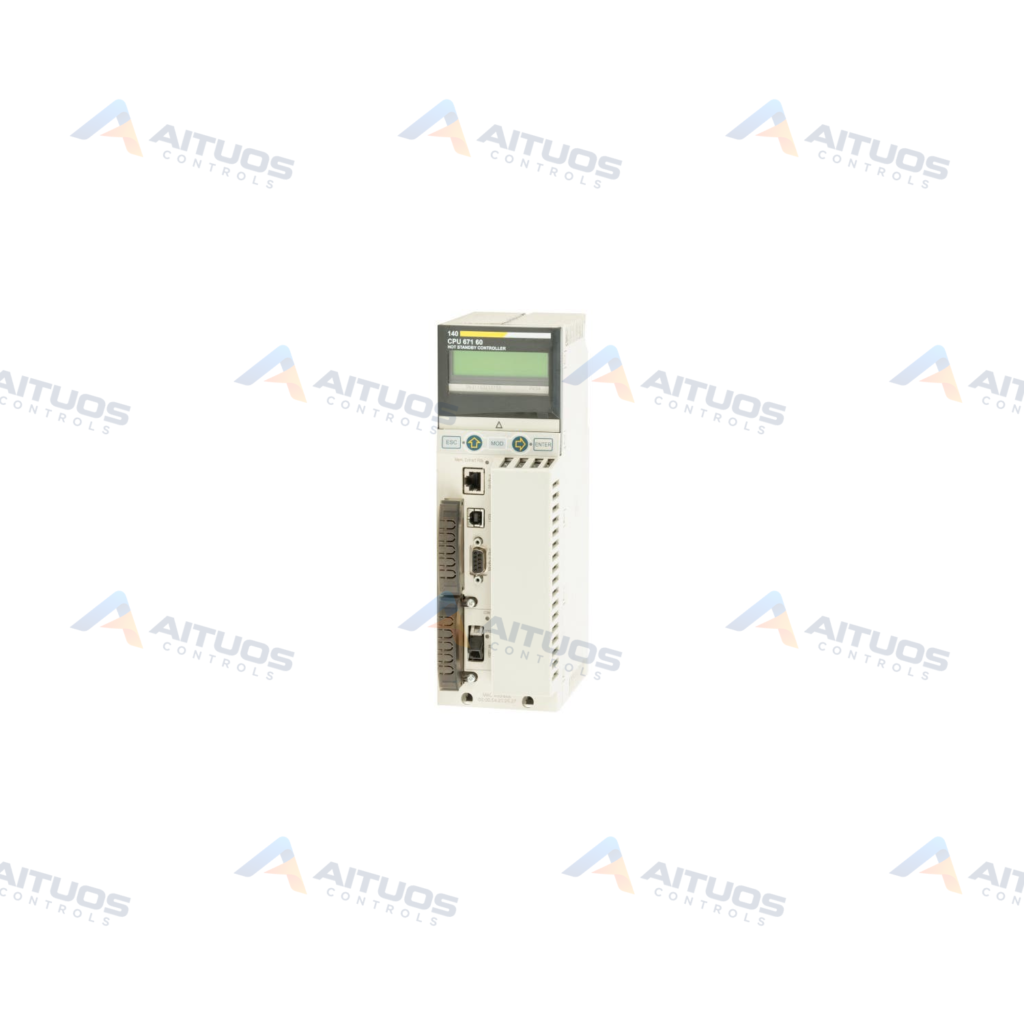

The Schneider Electric 140CPU67160 is a Modicon Quantum Processor Module. It features a Unity processor architecture operating at a 266 MHz clock frequency. The module incorporates 1024 KB of RAM capacity for program execution. It supports architecture across two local racks within a Modicon Quantum system. The unit is designed for direct backplane installation.
This processor module integrates multiple communication ports, including Ethernet, Modbus, and Modbus Plus. It provides multimode Ethernet connectivity along with one dedicated local USB connection. The module supports hot standby operation for redundant configurations. It handles counter I/O, serial link I/O, and high-speed interrupt inputs. The unit also supports accurate time stamping I/O functions. Operating temperatures range from 0°C to 60°C.
TECHNICAL DATA
Technical Specifications
| Parameter | Specification |
|---|
| Product Line | Modicon Quantum |
|---|
| EAN | 3595863819380 |
|---|
| Weight | 2.00 lbs (0.91 kg) |
|---|
| Clock Frequency | 266 MHz |
|---|
| Processor Type | Unity Processor |
|---|
| Hot Standby Processor | Yes |
|---|
| Communication Ports | Ethernet, Modbus, Modbus Plus |
|---|
| RAM Capacity | 1024 KB |
|---|
| Multimode Ethernet | Supported |
|---|
| Operating Temperature Range | 0°C to 60°C |
|---|
| Storage Temperature Range | -40°C to 85°C |
|---|
| Number of Local Racks | 2 racks |
|---|
| Counter I/O | Supported |
|---|
| Serial Link I/O | Supported |
|---|
| High-Speed Interrupt Inputs | Supported |
|---|
| Accurate Time Stamping I/O | Supported |
|---|
| USB Connections | 1 connection |
|---|
| Mounting Type | Rack Mountable |
|---|
TECHNICAL INFORMATION
Features
- Unity processor operating at a clock frequency of 266 MHz.
- Internal RAM capacity of 1024 KB.
- Hot standby processor capability for system redundancy.
- Support for configurations across two local racks.
- Integrated communication ports for Ethernet, Modbus, and Modbus Plus.
- Multimode Ethernet network support.
- One dedicated USB connection for local device access.
- Support for counter I/O, serial link I/O, and high-speed interrupt inputs.
- Accurate time stamping I/O functionality.
TECHNICAL INFORMATION
Applications
- Modicon Quantum PLC systems requiring redundant hot standby architectures.
- Industrial automation processes communicating via Modbus Plus and Ethernet networks.
- Control setups requiring high-speed interrupt processing and counter I/O.
TECHNICAL INFORMATION
Connections / Interfaces
- One USB connection port for local access.
- Multimode Ethernet communication port.
- Modbus communication interface.
- Modbus Plus network interface.
TECHNICAL INFORMATION
Installation Guidelines
- Mount the module directly into a Modicon Quantum rack backplane slot.
- Maintain an ambient operating temperature between 0°C and 60°C.
- Ensure adequate ventilation within the enclosure during operation.
- Connect network communication cables securely prior to powering the rack.
TECHNICAL INFORMATION
Configuration Guidelines
- Assign network parameters for the Ethernet, Modbus, and Modbus Plus ports.
- Configure hot standby operating parameters when establishing a redundant processor pairing.
- Define parameters for counter I/O and high-speed interrupt inputs as required.
TECHNICAL INFORMATION
Compatibility
- Modicon Quantum rack systems.
- Modbus and Modbus Plus industrial network devices.
COMPATIBILITY
Compatibility & Replacement
COMPATIBLE MODELSModicon Quantum rack systems. Modbus and Modbus Plus industrial network devices.
