Product Overview

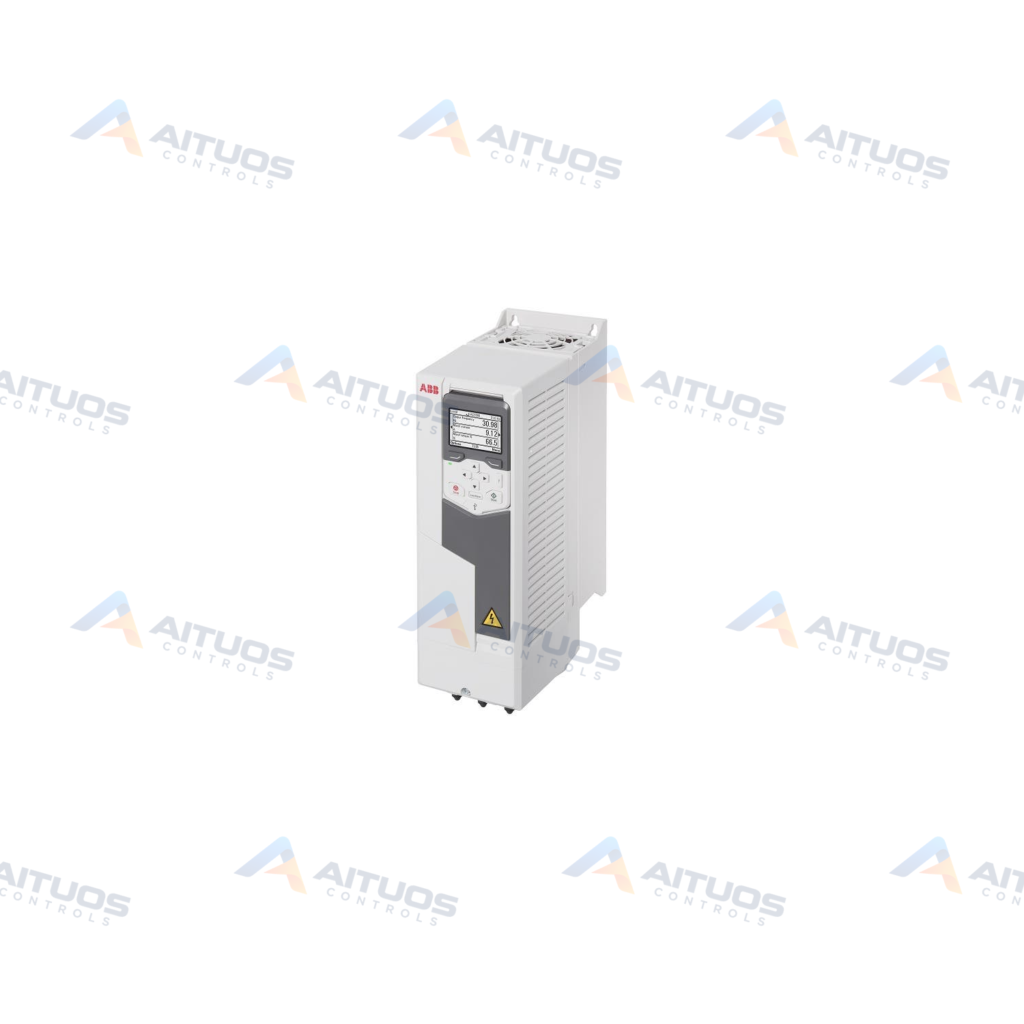

The ABB ACS580-01-017A-2+K490 3AXD50000856312 is an AC Drive within the ACS580 drive family. This unit operates on a three-phase supply voltage from 208 to 240 V AC at 50/60 Hz. It provides an apparent power output of 6.7 kVA. Under normal use conditions, the rated output current reaches 16.7 A. For light-overload applications, the drive delivers up to 5 HP output power. The physical build uses an R1 frame size engineered for direct wall mounting.
This AC drive incorporates an IP55 and NEMA Type 12 protective enclosure for industrial operating conditions. It maintains an IE2 efficiency classification with a standby power loss of 13 W. Operational ambient temperatures are supported up to 40 °C (104 °F). The unit enables direct installation on walls without requiring secondary protective enclosures. Facilities can deploy this hardware directly in environments exposed to dust and splashing liquids.
TECHNICAL DATA
Technical Specifications
| Parameter | Specification |
|---|
| Input Voltage (Uin) | 208 - 240 V AC, 3-phase |
|---|
| Frequency | 50/60 Hz |
|---|
| Frame Size | R1 |
|---|
| Enclosure / Protection | IP55, NEMA Type 12 |
|---|
| Mounting Type | Wall-mounting |
|---|
| Output Current (Normal Use) | 16.7 A |
|---|
| Output Power (Light-Overload Use) | 5 HP |
|---|
| Apparent Power Output | 6.7 kVA |
|---|
| Efficiency Level | IE2 |
|---|
| Standby Loss | 13 W |
|---|
| Temperature Rating | Up to 40 °C (104 °F) |
|---|
TECHNICAL INFORMATION
Features
- Protective enclosure rated to IP55 and NEMA Type 12 standards.
- Engineered for direct wall mounting inside a compact R1 frame footprint.
- Delivers 5 HP output capacity under light-overload operational duty.
- Supplies 16.7 A continuous output current during normal use conditions.
- Provides 6.7 kVA apparent power output rating.
- Operates across three-phase 208 to 240 V AC input lines at 50/60 Hz.
- Maintains an IE2 efficiency rating with low 13 W standby power loss.
TECHNICAL INFORMATION
Applications
- Industrial three-phase AC motor control requiring direct wall-mount drive placement.
- Motor drive installations in areas subject to dust exposure and water spraying.
- Decentralized machinery automation installations without external control cabinets.
TECHNICAL INFORMATION
Installation Guidelines
- Mount the R1 frame drive securely in a vertical orientation on a flat wall.
- Verify the three-phase AC input supply voltage stays within 208 to 240 V AC.
- Ensure ambient air temperature remains at or below 40 °C (104 °F).
- Maintain adequate free space around the IP55 housing to allow proper heat dissipation.
TECHNICAL INFORMATION
Compliance and Certifications
- Enclosure rated to IP55 ingress protection and NEMA Type 12 standards.
- Efficiency complies with the IE2 international performance standard.
PART VERIFICATION
Before You Order
