PRODUCT INFORMATION
Product Overview

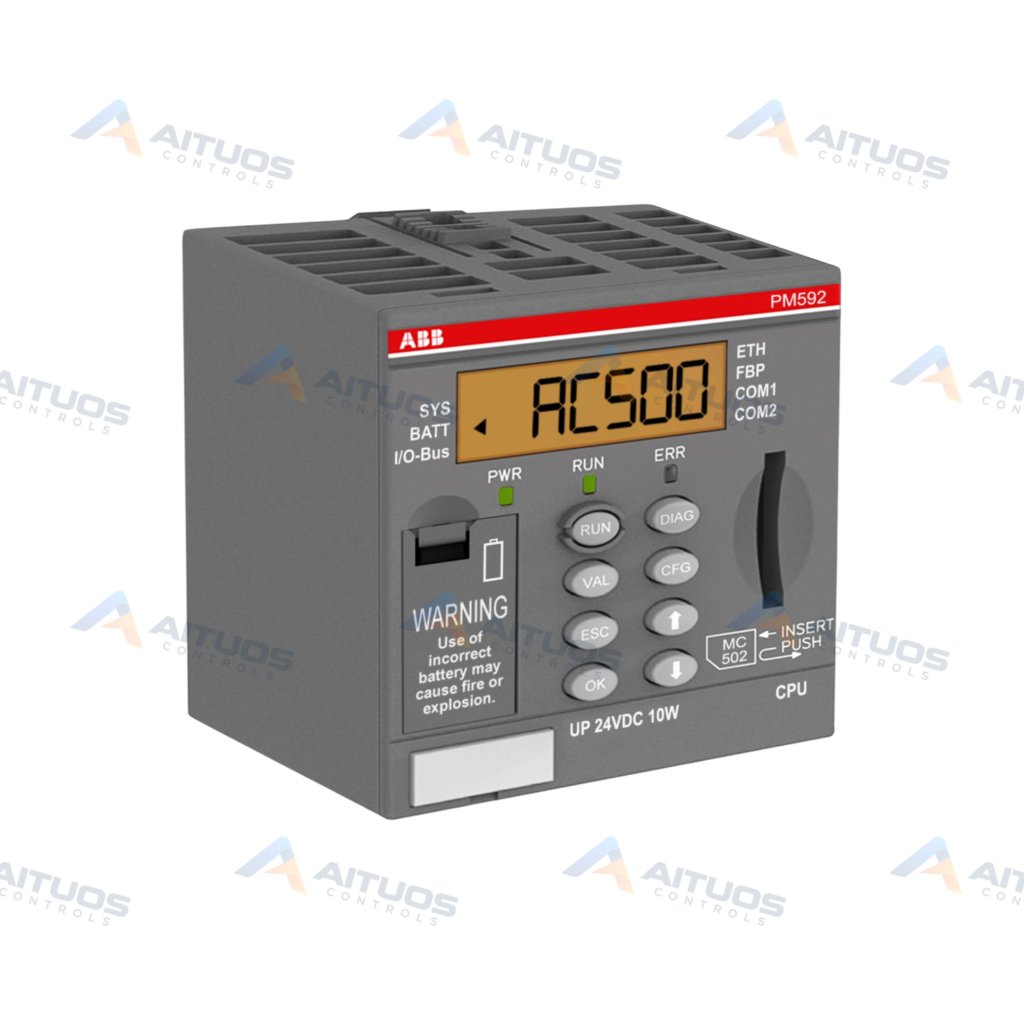

The ABB PM592-ETH 1SAP150200R0271 is an AC500 processor module designed for industrial automation systems. It features 4 MB of user program memory and an integrated 4 GB flash disk. The unit operates from a nominal 24 VDC power supply. It executes application logic and handles local input and output signals through the AC500 I/O-bus.
Communication options include an onboard Ethernet TCP/IP interface, two configurable serial ports, and an ABB Fieldbus Plug interface. The front panel features an LCD display, eight function keys, and three status LEDs for operator interaction. Up to 10 local extension modules connect directly to the processor via the internal I/O-bus. The housing mounts directly on a standard TH35-15 DIN rail and carries an IP20 protection rating.
TECHNICAL DATA
Technical Specifications
| Parameter | Specification |
|---|
| Program memory | 4 MB |
|---|
| Integrated flash disk | 4 GB |
|---|
| Nominal supply voltage | 24 VDC |
|---|
| Serial interfaces | 2 × RS-232/485 |
|---|
| Ethernet interfaces | 1 |
|---|
| Fieldbus Plug interface | 1 × FBP |
|---|
| Display | LCD |
|---|
| Memory-card slot | Present |
|---|
| Degree of protection | IP20 |
|---|
| Product net weight | 0.153 kg |
|---|
| Product net width | 67.5 mm |
|---|
| Product net height | 76 mm |
|---|
| Product net depth | 62 mm |
|---|
| Memory | 4 MB |
|---|
| Ethernet ports | 2 |
|---|
| Fieldbus interface | FBP |
|---|
TECHNICAL INFORMATION
Features
- Provides 4 MB of user program memory and 4 GB of integrated flash disk storage.
- Operates on a nominal 24 VDC power supply.
- Includes an onboard Ethernet TCP/IP interface for communication and programming.
- Features two serial ports configurable for RS-232 or RS-485 modes.
- Includes one dedicated Fieldbus Plug (FBP) interface.
- Integrates an LCD display, eight function keys, and three status LEDs.
- Contains an integrated SD card slot for external removable memory.
- Supports up to 10 local extension modules on the I/O-bus.
TECHNICAL INFORMATION
Applications
- Industrial process control and automation within ABB AC500 programmable controller systems.
- Local logging and data retention using the integrated 4 GB flash disk.
- Distributed automation networks communicating over Ethernet TCP/IP, Modbus, ASCII, and CS31.
TECHNICAL INFORMATION
Connections / Interfaces
- One onboard Ethernet interface for network communication and programming.
- Serial port 1 configurable for RS-232 or RS-485 communication.
- Serial port 2 configurable for RS-232 or RS-485 communication.
- One dedicated Fieldbus Plug (FBP) interface for fieldbus connectivity.
- One local I/O-bus connection supporting up to 10 extension modules.
- One integrated SD card slot for removable memory media.
TECHNICAL INFORMATION
Installation Guidelines
- Mount the unit on a standard TH35-15 DIN rail according to IEC 60715.
- Install horizontally for standard operation or vertically with applicable thermal derating.
- Maintain an ambient operating temperature between 0 °C and +60 °C.
- Connect the module to a 24 VDC power supply.
- Operate the device inside a protective enclosure conforming to IP20 environmental requirements.
TECHNICAL INFORMATION
Configuration Guidelines
- Configure controller parameters, communication interfaces, and control logic using ABB Automation Builder software.
- Assign network settings and IP addresses through the onboard Ethernet interface.
- Define serial protocol parameters for RS-232 or RS-485 operation in the configuration tool.
- Manage local application data files on the internal 4 GB flash disk.
TECHNICAL INFORMATION
Compatibility
- Connects to up to 10 local extension modules via the AC500 I/O-bus.
- Configures and programs through ABB Automation Builder software.
- Supports communication with ABB Fieldbus Plug devices.
TECHNICAL INFORMATION
Compliance and Certifications
- CE Declaration of Conformity (1SAD938504-0161)
- UL Certification (1SAA960000-1612)
- cUL and CSA Certification (1SAA960000-1712)
- C-Tick Declaration (1SAA960000-3302)
- KCC Declaration (1SAA960001-4801)
- Marine approvals: ABS, BV, DNV, GL, LR, RINA, and RMRS
- RoHS Directive 2002/95/EC compliant
TECHNICAL RESOURCES
Documentation
COMPATIBILITY
Compatibility & Replacement
COMPATIBLE MODELSConnects to up to 10 local extension modules via the AC500 I/O-bus. Configures and programs through ABB Automation Builder software. Supports communication with ABB Fieldbus Plug devices.
Verify compatibility against the exact Part Number, revision and manufacturer documentation before ordering.
PART VERIFICATION
Before You Order
Industrial automation parts can share similar model names, suffixes and revisions. Confirm the complete manufacturer Part Number before purchase.
01Check Part NumberMatch the complete ordering code on the existing unit.
02Confirm RevisionCheck suffix, hardware or firmware when applicable.
03Send a Label PhotoWe can review a clear label photo when identification is uncertain.
ORDERING PROCESS
From RFQ to Dispatch
1Submit Part Number2Verify Product Identity3Confirm Stock & Condition4Issue Quotation5Dispatch & Tracking
PRODUCT FAQ
Frequently Asked Questions
What memory capacity does the ABB PM592-ETH processor module provide?
The PM592-ETH provides 4096 kB of program memory, 5632 kB of data memory, and 4 GB flash.
What communication interfaces are present on part number 1SAP150200R0271?
The module provides one onboard Ethernet interface, two configurable RS-232/RS-485 serial ports, and one Fieldbus Plug interface.
How many local I/O modules can connect to the PM592-ETH?
The processor module supports up to 10 local extension modules on the AC500 I/O-bus.
