PRODUCT INFORMATION
Product Overview

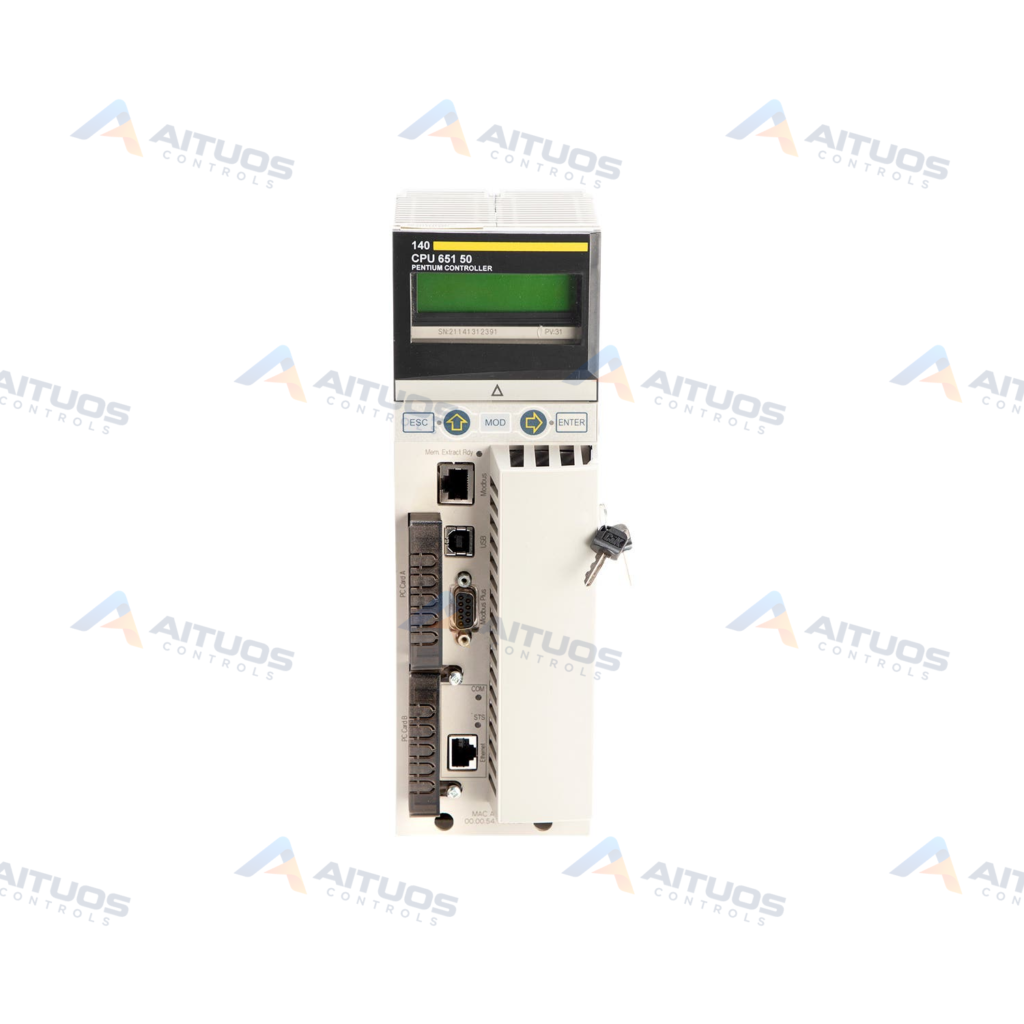

The Schneider Electric 140CPU65150 is a Modicon Quantum Unity Processor Module. It operates at a clock frequency of 166 MHz. The unit includes 768 KB of onboard RAM. It features a protective coating for harsh operating environments. Furthermore, it supports two local racks. The operating temperature spans from 0°C to 60°C.
This processor provides diverse communication and input management options. It features one Ethernet TCP/IP connection and one USB connection. The module supports an Ethernet router function. In addition, it handles counter I/O and serial link I/O operations. It also accommodates high-speed interrupt inputs. The hardware supports accurate time stamping for I/O operations. Its storage temperature ranges from -40°C to 85°C.
TECHNICAL DATA
Technical Specifications
| Parameter | Specification |
|---|
| Product Line | Modicon Quantum |
|---|
| EAN | 3595862066402 |
|---|
| Weight | 2.44 lbs (1.11 kg) |
|---|
| Processor Type | Unity Processor |
|---|
| Clock Frequency | 166 MHz |
|---|
| RAM | 768 KB |
|---|
| Coated | Yes |
|---|
| Suitable for Applications in Harsh Environments | Yes |
|---|
| Operating Temperature Range | 0°C to 60°C |
|---|
| Storage Temperature Range | -40°C to 85°C |
|---|
| Number of Racks | 2 local racks |
|---|
| Counter I/O | Supported |
|---|
| Serial Link I/O | Supported |
|---|
| High-Speed Interrupt Inputs | Supported |
|---|
| Accurate Time Stamping I/O | Supported |
|---|
| Ethernet Router | Supported |
|---|
| USB Connections | 1 connection |
|---|
| Ethernet TCP/IP Connections | 1 connection |
|---|
TECHNICAL INFORMATION
Features
- Unity Processor running at a 166 MHz clock frequency
- Internal memory capacity of 768 KB RAM
- Coated design suitable for harsh environments
- Architecture supporting two local racks
- Built-in support for an Ethernet router
- Handling for counter I/O and serial link I/O
- Accurate time stamping and high-speed interrupt inputs
TECHNICAL INFORMATION
Applications
- Modicon Quantum automation systems operating in harsh environments
- Industrial control setups requiring accurate I/O time stamping
- Automation installations utilizing high-speed interrupt inputs and counter I/O
TECHNICAL INFORMATION
Connections / Interfaces
- One Ethernet TCP/IP connection
- One USB connection
- Serial link I/O interface
TECHNICAL INFORMATION
Installation Guidelines
- Operate the processor module within the temperature range of 0°C to 60°C.
- Store the hardware within an ambient temperature range of -40°C to 85°C.
- Configure the installation across a maximum of two local racks.
TECHNICAL INFORMATION
Configuration Guidelines
- Configure the integrated Ethernet TCP/IP connection for network communication.
- Assign settings for counter I/O and serial link I/O operations.
- Enable high-speed interrupt inputs and time stamping as required.
PART VERIFICATION
Before You Order
Industrial automation parts can share similar model names, suffixes and revisions. Confirm the complete manufacturer Part Number before purchase.
01Check Part NumberMatch the complete ordering code on the existing unit.
02Confirm RevisionCheck suffix, hardware or firmware when applicable.
03Send a Label PhotoWe can review a clear label photo when identification is uncertain.
ORDERING PROCESS
From RFQ to Dispatch
1Submit Part Number2Verify Product Identity3Confirm Stock & Condition4Issue Quotation5Dispatch & Tracking
PRODUCT FAQ
Frequently Asked Questions
What are the processor speed and memory capacity of the 140CPU65150?
The module features a 166 MHz Unity Processor and contains 768 KB of RAM.
Is the Schneider Electric 140CPU65150 suitable for harsh environments?
Yes. The module is coated and is designed for operation in harsh environmental conditions.
What external communication connections does the 140CPU65150 include?
It features one Ethernet TCP/IP connection and one USB connection.
What is the reference price for the 140CPU65150 processor module?
The observed market reference price is $3,890 USD. This figure is indicative market reference pricing only and is not a final quotation.
