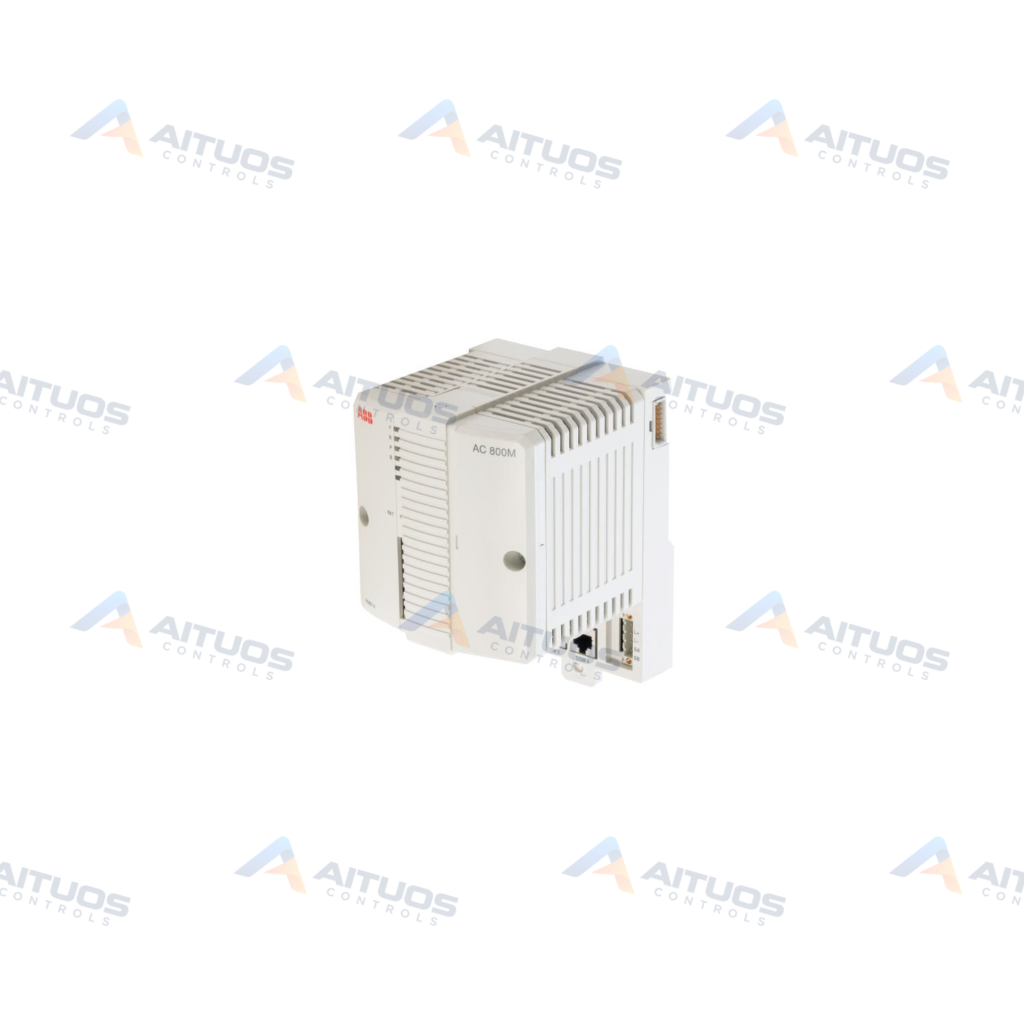

| Redundancy | No |
|---|
| High Integrity | No |
|---|
| Clock Frequency | 24 MHz |
|---|
| Performance, 1000 boolean operations | 0.46 ms |
|---|
| Performance | 0.46 ms |
|---|
| Memory | 12 MB (from 800xA 5.1 FP4) |
|---|
| RAM available for application | 6.253 MB (from 800xA 5.1 FP4) |
|---|
| Flash memory for storage | Yes |
|---|
| Processor type | MPC860 |
|---|
| Switch over time in red. conf. | NA |
|---|
| No. of applications per controller | 32 |
|---|
| No. of programs per application | 64 |
|---|
| No. of diagrams per application | 128 |
|---|
| No. of tasks per controller | 32 |
|---|
| Number of different cycle times | 32 |
|---|
| Cycle time per application programs | Down to 1 ms |
|---|
| Flash PROM for firmware storage | 2 MB |
|---|
| Power supply | 24 V DC (19.2-30 V d.c.) |
|---|
| Power consumption +24 V typ/max | 180 / 300 mA |
|---|
| Power dissipation | 4.32 W (7.2 W max) |
|---|
| Redundant power supply status input | Yes |
|---|
| Built-in back-up battery | Lithium, 3.6 V |
|---|
| Clock synchronization | 1 ms between AC 800M controllers by CNCP protocol |
|---|
| Event queue in controller per OPC client | Up to 3000 events |
|---|
| AC 800M transm. speed to OPC server | 36-86 events/sec ,113-143 data messages/sec |
|---|
| Comm. modules on CEX bus | 1 |
|---|
| Supply current on CEX bus | Max 2.4 A |
|---|
| I/O clusters on Modulebus with non-red. CPU | 1 electrical, 1 optical |
|---|
| I/O clusters on Modulebus with red. CPU | NA |
|---|
| I/O capacity on Modulebus | Max 24 I/O modules |
|---|
| Modulebus scan rate | 0 - 100 ms (actual time depending on number of I/O modules) |
|---|
| Supply current on Electrical Modulebus | 24 V : max 1.0 A 5 V : max 1.5 A |
|---|
| Ethernet channels | 1 |
|---|
| Ethernet interface | Ethernet (IEEE 802.3), 10 Mbit/s, RJ-45, female (8-pole) |
|---|
| Control Network protocol | MMS (Manufacturing Message Service) and IAC (Inter Application Communication) |
|---|
| Recommended Control Network backbone | 100 Mbit/s switched Ethernet |
|---|
| Real-time clock stability | 100 ppm (approx. 1 h/year) |
|---|
| RS-232C interface | 2 (one general, 1 for service tool) |
|---|
| RS-232C interface (COM3) (non red. only) | RS-232C, 75-19 200 baud, RJ-45 female (8-pole), not opto isolated, full RTS-CTS support |
|---|
| RS-232C interface (COM4) (non red. only) | RS-232C, 9 600 baud, RJ-45 female (8-pole), opto isolated, no RTS-CTS support |
|---|
| Temperature, Operating | 0 to +55 °C (+32 to +131 °F) |
|---|
| Temperature, Storage | -40 to +70 °C (-40 to +158 °F) |
|---|
| Temperature changes | 3 °C/minutes according to IEC/EN 61131-2 |
|---|
| Pollution degree | Degree 2 according to IEC/EN 61131-2 |
|---|
| Corrosion protection | G3 compliant to ISA 71.04 |
|---|
| Relative humidity | 5 to 95 %, non-condensing |
|---|
| Emitted noise | < 55 dB (A) |
|---|
| Vibration | 10 < f < 50 Hz: 0.0375 mm amplitude, 50 < f < 150 Hz: 0.5 g acceleration, 5 < f < 500 Hz: 0.2 g acceleration |
|---|
| Rated Isolation Voltage | 50 V |
|---|
| Dielectric test voltage | 500 V a.c. |
|---|
| Protection class | IP20 according to EN 60529, IEC 529 |
|---|
| Altitude | 2000 m according to IEC/EN 61131-2 |
|---|
| Emission & Immunity | EN 61000-6-4, EN 61000-6-2 |
|---|
| CE Mark | Yes |
|---|
| Electrical Safety | EN 50178, IEC 61131-2, UL 61010-1, UL 61010-2-201 |
|---|
| Hazardous location | cULus Class 1, Zone 2, AEx nA IIC T4, ExnA IIC T4Gc X |
|---|
| Marine certificates | ABS, BV, DNV, LR, CCS |
|---|
| TUV Approval | No |
|---|
| RoHS compliance | EU RoHS, UAE RoHS, CN RoHS |
|---|
| WEEE compliance | DIRECTIVE/2012/19/EU |
|---|
| Width | 119 mm |
|---|
| Height | 186 mm |
|---|
| Depth | 135 mm |
|---|
| Weight (including base) | 1100 g |
|---|
