PRODUCT INFORMATION
Product Overview

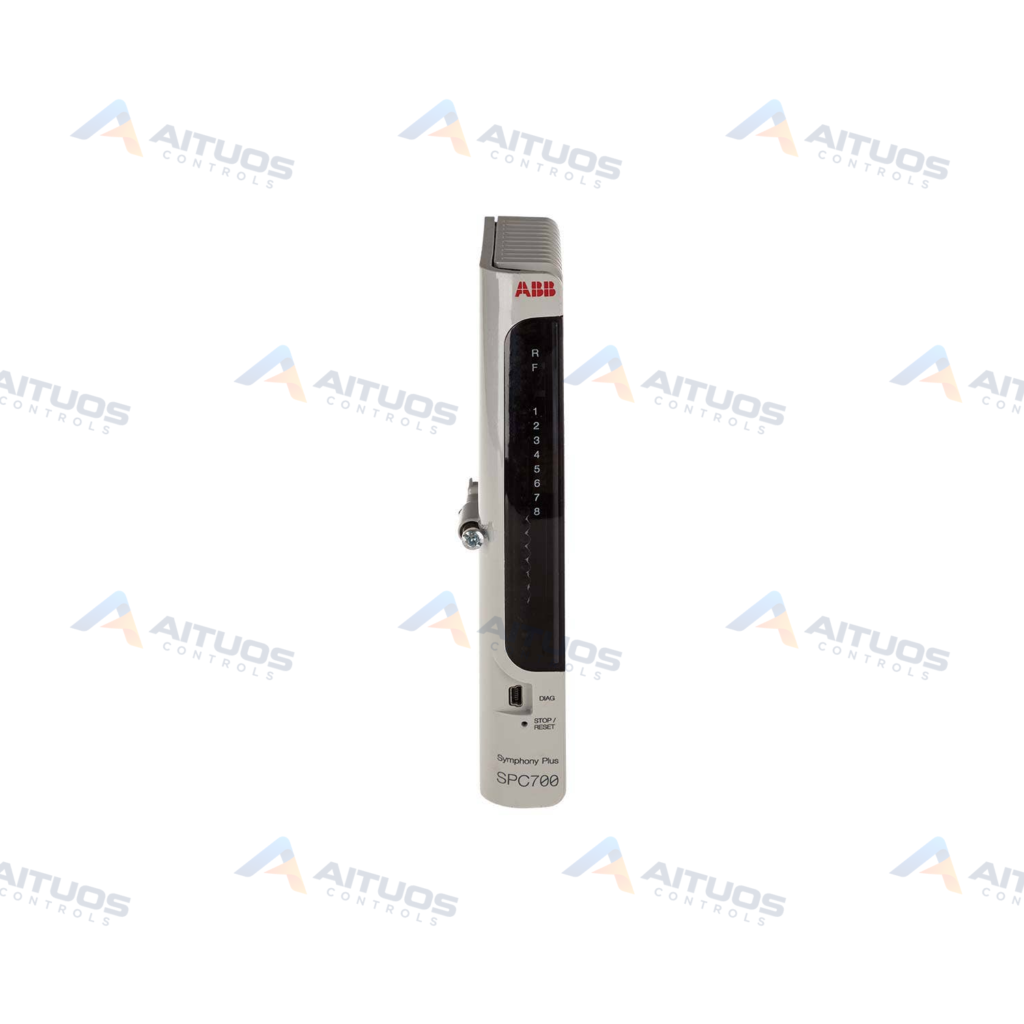

The ABB SPC700 SPC700K02 is a redundant process controller kit for the Symphony Plus control system. This horizontal row mount kit contains two SPC700 modules, one MB710 base, and two TER810 bus terminators. The controller executes discrete, continuous, and sequential process control algorithms. It operates without an internal battery and consumes 3.6 W typical per module at 24 VDC.
Each SPC700 controller features a 250 MHz MCF54418 processor with 128 MB DRAM and 512 KB MRAM. The redundant system delivers automatic controller failover within one controller scan cycle. It manages up to 1,000 process I/O points and completes closed-loop cycles in under 250 milliseconds. Operating temperature ranges from -40 to +70 degrees Celsius in an IP20 housing.
TECHNICAL DATA
Technical Specifications
| Parameter | Specification |
|---|
| Processor Type | MCF54418 @ 250 MHz |
|---|
| Memory | 128 MB DRAM, 512 KB NVRAM (MRAM), 4 MB Flash ROM |
|---|
| Function Block Capacity | Up to 10,000 function blocks per controller |
|---|
| Closed Loop Performance | 1,000 I/O in under 250 ms |
|---|
| Controller Switchover Time | 1 controller scan cycle |
|---|
| Module Power Requirements | 3.6 W (150 mA typical) @ 24 VDC (+16% / -10%) per module |
|---|
| Backup Battery | None required |
|---|
| Form Factor | Full-size (190 mm), Horizontal Row |
|---|
| Operating Temperature | -40 to +70 °C (IEC/EN 60068-2-1, IEC/EN 60068-2-2) |
|---|
| Storage Temperature | -40 to +85 °C (MIL-STD-810G) |
|---|
| Relative Humidity | 20% to 95% @ 40 °C non-condensing |
|---|
| Protection Class | IP20 (EN 60529, IEC 529) |
|---|
| I/O Capacity | Up to 1,000 hardwired I/O, up to 8 remote I/O links |
|---|
| Network Interfaces | 4x RJ45 Ethernet ports (PN800A, PN800B, EN 2A, EN 2B) |
|---|
| Dimensions | 90 mm W x 190 mm H x 127 mm D |
|---|
| Weight | 941 g (including MB710 base) |
|---|
TECHNICAL INFORMATION
Features
- Kit includes two SPC700 modules, one MB710 base, and two TER810 bus terminators.
- Controller switchover completes within a single controller scan cycle.
- Executes closed-loop control for 1,000 I/O points in under 250 milliseconds.
- Supports up to 10,000 function blocks across one to eight execution segments.
- Operating temperature range covers -40 to +70 degrees Celsius.
- Internal battery-free design eliminates routine maintenance requirements.
- Base includes four RJ45 ports for PN800, SNTP, and Modbus TCP.
TECHNICAL INFORMATION
Applications
- Symphony Plus distributed control system architectures in power and process plants.
- Continuous and batch process automation requiring redundant controller failover.
- Medium-scale industrial automation applications handling up to 1,000 process I/O points.
- Substation automation interfacing with Modbus TCP, IEC 61850, and IEC 60870-5-104 networks.
TECHNICAL INFORMATION
Connections / Interfaces
- Two RJ45 PN800 Plant Network Ethernet ports designated PN800A and PN800B.
- One RJ45 EN 2A Ethernet port for optional SNTP time synchronization.
- One RJ45 EN 2B Ethernet port for Modbus TCP communications.
- Redundant HN800 bus interface connecting local horizontal row I/O module bases.
- TB1 screw terminal on cHBX01L for 24 VDC module power input.
TECHNICAL INFORMATION
Installation Guidelines
- Mount the MB710 base horizontally on standard DIN rail inside an enclosure.
- Install the two TER810 bus terminators at the open HN800 segment ends.
- Seat both SPC700 controller modules securely into the MB710 dual-slot base assembly.
- Connect 24 VDC power to terminal TB1 on the cHBX01L carrier.
- Ensure adequate cabinet ventilation to support convective cooling between -40 and +70 °C.
TECHNICAL INFORMATION
Configuration Guidelines
- Configure controller execution across one to eight software segments.
- Set segment cycle times from 1 millisecond to 30 seconds.
- Assign each SPC700 node address as an even number from 2 to 248.
- Configure Modbus TCP communication for up to 4 servers and 50 clients.
TECHNICAL INFORMATION
Compatibility
- Direct connection to Symphony Plus SD Series and SDe Series I/O modules.
- Supports Harmony Rack HR Series I/O modules via RIO22 interface modules.
- Compatible with 100 Mbps and 1.0 Gbps PN800 Ethernet TCP networks.
- Integrates with Modbus TCP, PROFIBUS DP, IEC 61850, and IEC 60870-5-104 devices.
TECHNICAL INFORMATION
Lifecycle / Replacement Information
- The SPC700K02 kit is an active product in the ABB Symphony Plus system.
- The kit includes two SPC700 modules, one MB710 base, and two TER810 terminators.
TECHNICAL INFORMATION
Compliance and Certifications
- CE Mark compliant under EMC Directive 2004/108/EC and Low Voltage Directive 2006/95/EC.
- CSA certified for ordinary non-hazardous industrial locations.
- CSA Class I, Division 2, Groups A, B, C, D hazardous locations.
- RoHS Directive 2015/863 and WEEE Directive 2012/19/EU compliant.
- IEC 62443 Security Level 1 certified for Symphony Plus systems.
COMPATIBILITY
Compatibility & Replacement
COMPATIBLE MODELSDirect connection to Symphony Plus SD Series and SDe Series I/O modules. Supports Harmony Rack HR Series I/O modules via RIO22 interface modules. Compatible with 100 Mbps and 1.0 Gbps PN800 Ethernet TCP networks. Integrates with Modbus TCP, PROFIBUS DP, IEC 61850, and IEC 60870-5-104 devices.
Verify compatibility against the exact Part Number, revision and manufacturer documentation before ordering.
PART VERIFICATION
Before You Order
Industrial automation parts can share similar model names, suffixes and revisions. Confirm the complete manufacturer Part Number before purchase.
01Check Part NumberMatch the complete ordering code on the existing unit.
02Confirm RevisionCheck suffix, hardware or firmware when applicable.
03Send a Label PhotoWe can review a clear label photo when identification is uncertain.
ORDERING PROCESS
From RFQ to Dispatch
1Submit Part Number2Verify Product Identity3Confirm Stock & Condition4Issue Quotation5Dispatch & Tracking
PRODUCT FAQ
Frequently Asked Questions
What hardware is included in the ABB SPC700K02 kit?
The kit contains two SPC700 modules, one MB710 horizontal base, and two TER810 terminators.
What is the redundancy switchover time for the SPC700?
Switchover between redundant SPC700 controllers completes within one controller scan cycle.
Does the SPC700 controller require an internal backup battery?
No. The SPC700 uses 512 KB non-volatile MRAM and requires no backup battery.
What network ports are available on the SPC700K02 base?
The base provides four RJ45 Ethernet ports for PN800, SNTP, and Modbus TCP.
