Product Overview

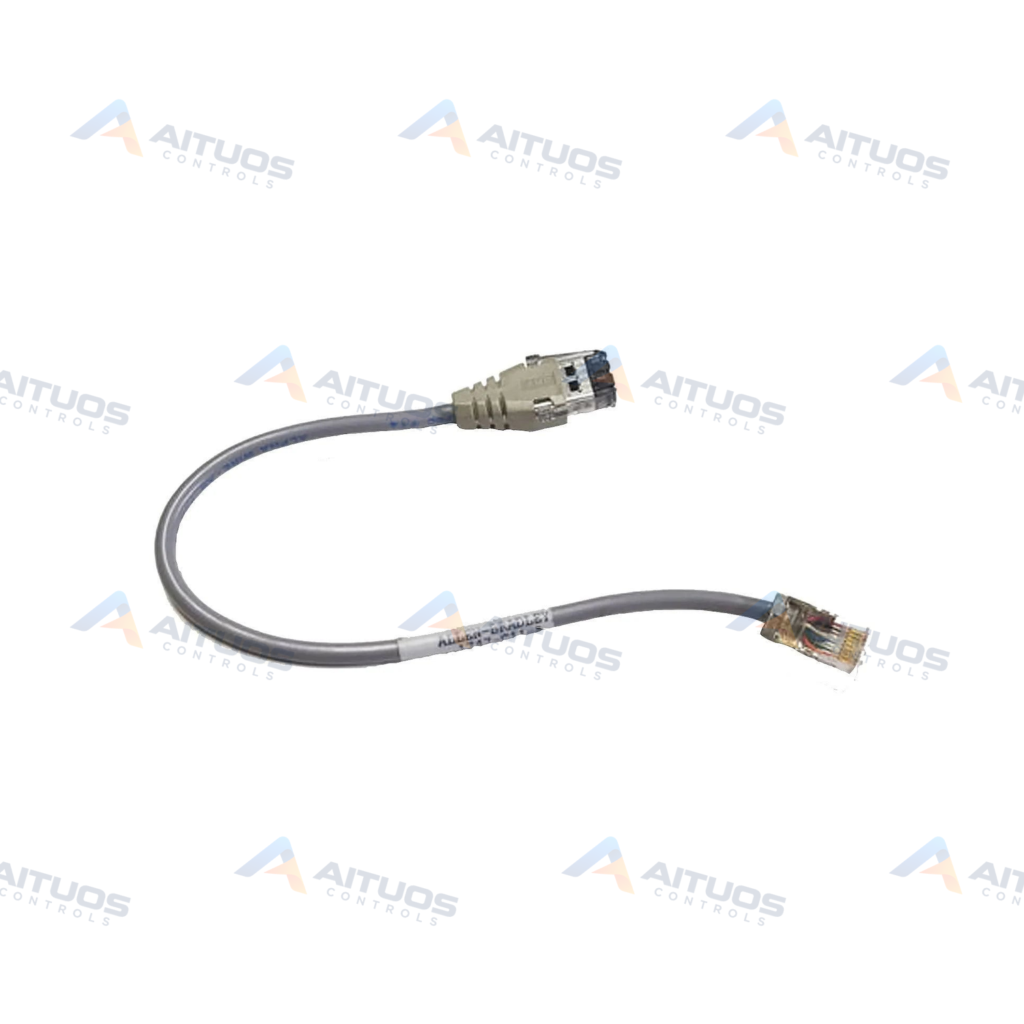

The Allen-Bradley 1747-C11 is an SLC 500 Interconnect Cable engineered for industrial control communications. It connects an SLC 500 processor DH-485 communication port directly to a 1747-AIC isolated link coupler. The cable measures 304.8 mm or 12 inches in length. It features factory-terminated RJ45 modular connectors on both ends. This design enables clean point-to-point wiring within the local equipment cabinet.
During standard operation, the cable carries data signals alongside 24V DC power from the processor to the coupler. This eliminates the need for a separate external power supply at the local coupler node. The cable withstands operating temperatures from 0 to 60 degrees Celsius and relative humidity up to 95 percent. It provides verified continuity across harsh industrial environments.
TECHNICAL DATA
Technical Specifications
| Parameter | Specification |
|---|
| Product function | Processor-to-isolated-link-coupler communication cable |
|---|
| Network | DH-485 |
|---|
| Length | 304.8 mm / 12 in / approximately 0.3 m |
|---|
| Connector pair | RJ-45 to RJ-45 |
|---|
| Endpoint A | SLC 500 processor DH-485 channel |
|---|
| Endpoint B | 1747-AIC isolated link coupler |
|---|
| Supported topology | One SLC controller to one isolated link coupler |
|---|
| Approximate mass | 0.02 kg |
|---|
| Manufacturer | Allen Bradley |
|---|
| Product Type | SLC Replacement Cable |
|---|
| Product Line | SLC 500 |
|---|
| Part Number | 1747-C11 |
|---|
| UPC | 662073579137 |
|---|
| Weight | 2.00 lbs (0.91 kg) |
|---|
| Series | A |
|---|
| Connector Type | RJ45 |
|---|
| Rated Supply Voltage | 24 Volts DC |
|---|
| Cable Length | 1 Foot |
|---|
| Operating Temperature | 0 to 60°C (Maximum) |
|---|
| Storage Temperature | -40 to 85°C (Maximum) |
|---|
| Humidity Tolerance | 5 to 95% |
|---|
| Operational Shock | Up to 30 G in 11 milliseconds |
|---|
| Application | Connecting Isolated Link Couplers and DH-485 InView Communication Modules to a SLC 500 Controller |
|---|
| Standards | UL, cUL, and CE-certified |
|---|
TECHNICAL INFORMATION
Features
- Terminated with dual RJ45 modular connectors for direct plug-in installation
- Delivers 304.8 mm (12 in.) length for compact enclosure routing
- Transfers DH-485 communication data alongside 24V DC coupler power
- Rated for 30 G operational shock resistance over 11 milliseconds
- Withstands wide operating temperatures between 0 and 60 degrees Celsius
- Complies with UL, cUL, and CE industrial standards
TECHNICAL INFORMATION
Applications
- Connecting SLC 500 modular or fixed processors to 1747-AIC isolated link couplers
- Integrating SLC 500 automation nodes into multi-drop DH-485 network trunks
- Linking DH-485 InView communication modules within control enclosures
TECHNICAL INFORMATION
Connections / Interfaces
- Primary endpoint mates with the RJ45 DH-485 port on SLC 500 processors
- Secondary endpoint plugs into the peripheral RJ45 jack on the 1747-AIC coupler
- Pre-wired pinout delivers bidirectional differential data lines and DC operating power
TECHNICAL INFORMATION
Installation Guidelines
- Verify that the SLC 500 rack power is turned off before connecting cable ends
- Insert each RJ45 connector firmly until the locking tab clicks into position
- Route the 12-inch cable away from high-voltage motor leads and AC power wiring
- Ensure the 1747-AIC chassis ground terminal connects directly to earth ground
TECHNICAL INFORMATION
Configuration Guidelines
- Configure the SLC processor communication channel for DH-485 protocol operation
- Set unique node addresses for each processor and interface device on the network
- Ensure terminating jumpers are applied on the end link couplers of the trunk line
TECHNICAL INFORMATION
Compatibility
- SLC 500 Fixed controllers with DH-485 channels
- SLC 5/01 modular controllers
- SLC 5/02 modular controllers
- SLC 5/03 modular controllers (DH-485 channel)
- 1747-AIC DH-485 isolated link couplers
- 1746-BAS and 1747-KE communication modules
TECHNICAL INFORMATION
Lifecycle / Replacement Information
- Direct OEM replacement cable for existing 1747-C11 assemblies
- Can serve as a shorter alternative to 1747-C10 (1.8 m) and 1747-C13 (0.9 m) cables
- Available for legacy SLC 500 DH-485 network maintenance and repairs
TECHNICAL INFORMATION
Compliance and Certifications
- UL Listed
- cUL Listed
- CE Marked
TECHNICAL RESOURCES
Documentation
COMPATIBILITY
Compatibility & Replacement
COMPATIBLE MODELSSLC 500 Fixed controllers with DH-485 channels SLC 5/01 modular controllers SLC 5/02 modular controllers SLC 5/03 modular controllers (DH-485 channel) 1747-AIC DH-485 isolated link couplers 1746-BAS and 1747-KE communication modules
Verify compatibility against the exact Part Number, revision and manufacturer documentation before ordering.
PART VERIFICATION
Before You Order
Industrial automation parts can share similar model names, suffixes and revisions. Confirm the complete manufacturer Part Number before purchase.
01Check Part NumberMatch the complete ordering code on the existing unit.
02Confirm RevisionCheck suffix, hardware or firmware when applicable.
03Send a Label PhotoWe can review a clear label photo when identification is uncertain.
ORDERING PROCESS
From RFQ to Dispatch
1Submit Part Number2Verify Product Identity3Confirm Stock & Condition4Issue Quotation5Dispatch & Tracking
PRODUCT FAQ
Frequently Asked Questions
What is the primary function of the Allen-Bradley 1747-C11 cable?
It connects an SLC 500 controller DH-485 channel to a 1747-AIC isolated link coupler.
Does the 1747-C11 cable carry power to the isolated link coupler?
Yes. It delivers 24V DC operating power from the processor to the 1747-AIC coupler.
What is the physical length and connector configuration of this cable?
The cable measures 304.8 mm (12 inches) and has an RJ45 modular plug on each end.
Can the 1747-C11 cable be used with SLC 5/01 and SLC 5/02 processors?
Yes. It supports direct connection between the DH-485 port of those processors and the link coupler.
