PRODUCT INFORMATION
Product Overview

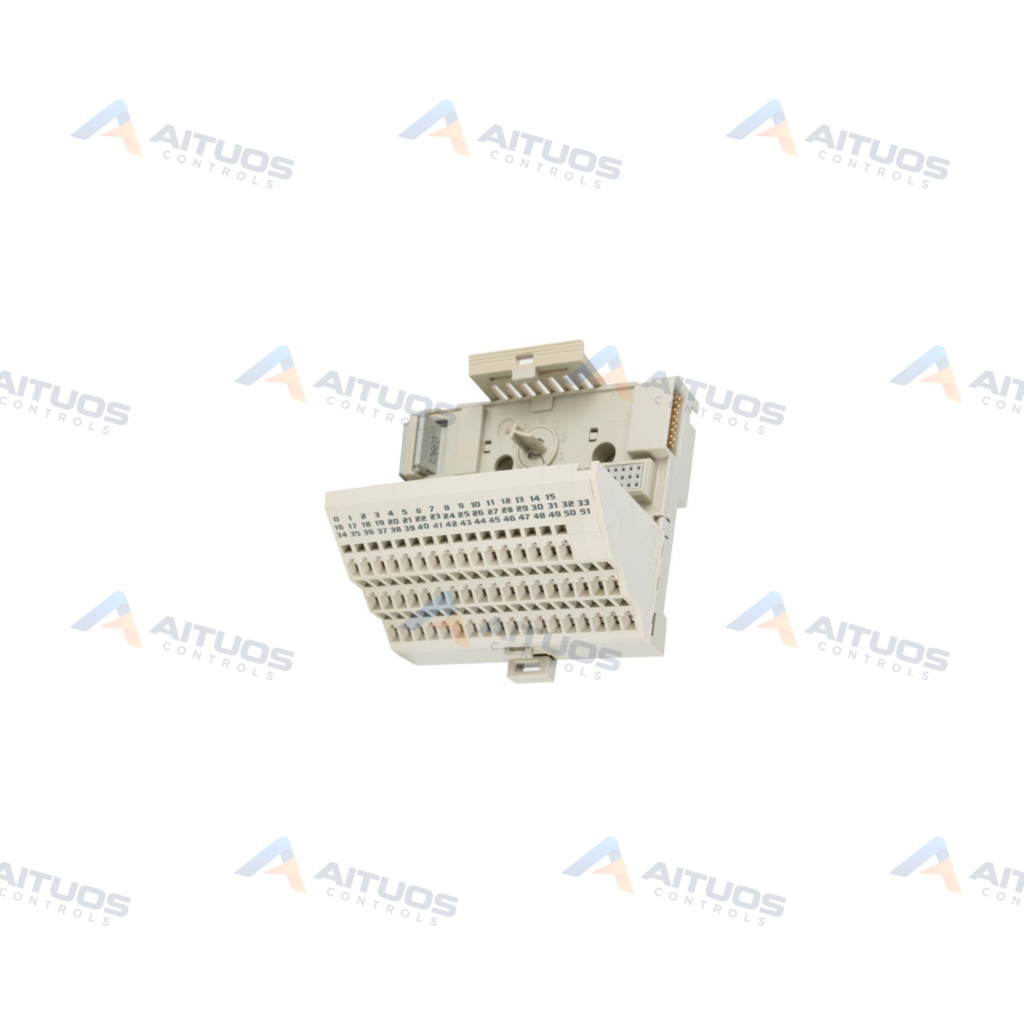

The Allen-Bradley 1794-TB3GS is a FLEX I/O Terminal Base Unit designed for the FLEX I/O platform. This unit provides signal routing and power distribution for compatible modules. It features thirty-six spring clamp I/O terminals for field connections. Two dedicated common terminals and two voltage terminals facilitate power distribution. The base supports a nominal operating voltage of 24 V AC/DC. It handles a maximum continuous input current of up to 10.0 A.
The assembly features an open-style enclosure with an IP20 protection rating. Users can mount this unit directly on a standard DIN rail. Spring clamp terminals accommodate wire conductor sizes from 0.34 to 3.3 mm². Maximum supply voltage reaches 31.2 V AC/DC at 50/60 Hz. The terminal base provides continuous isolation voltage rated up to 50 V. Physical dimensions measure 94 mm by 94 mm by 69 mm.
TECHNICAL DATA
Technical Specifications
| Parameter | Specification |
|---|
| Product Line | Flex I/O 1794 |
|---|
| UPC | 612598180240 |
|---|
| Weight | 0.63 lbs (0.28 kg) |
|---|
| Input Voltage | 24 V |
|---|
| Input Voltage Type | AC/DC |
|---|
| Max. Input Current | 10.0 A |
|---|
| Number of I/O Terminals | 36 Terminals |
|---|
| Number of Common Terminals | 2 Terminals |
|---|
| Number of Voltage Terminals | 2 Terminals |
|---|
| Enclosure Type | Open Style |
|---|
| Mounting Type | DIN Mount |
|---|
| IP Protection | IP20 |
|---|
| Terminal Type | Spring Clamp Terminals |
|---|
TECHNICAL INFORMATION
Features
- Offers 36 spring clamp I/O terminals for field wiring.
- Includes 2 common and 2 voltage connection terminals.
- Supports 24 V AC/DC nominal operating voltage.
- Accommodates wire sizes from 0.34 to 3.3 mm².
- Designed for standard DIN rail mounting in open enclosures.
- Provides 50 V continuous isolation voltage protection.
TECHNICAL INFORMATION
Connections / Interfaces
- Provides 36 spring clamp terminals for field I/O wiring.
- Includes 2 common terminals for return wiring connections.
- Features 2 voltage terminals for field device power distribution.
- Accepts solid or stranded conductors from 0.34 to 3.3 mm².
- Features terminal assembly screw torque specified at 0.56 to 0.79 Nm.
TECHNICAL INFORMATION
Installation Guidelines
- Mount the terminal base onto a standard DIN rail inside a protective cabinet.
- Ensure the operating environment conforms to the IP20 open-style enclosure rating.
- Insert stripped conductors between 0.34 and 3.3 mm² into the spring clamps.
- Tighten specified assembly screws to a torque between 0.56 and 0.79 Nm.
TECHNICAL RESOURCES
Documentation
PART VERIFICATION
Before You Order
Industrial automation parts can share similar model names, suffixes and revisions. Confirm the complete manufacturer Part Number before purchase.
01Check Part NumberMatch the complete ordering code on the existing unit.
02Confirm RevisionCheck suffix, hardware or firmware when applicable.
03Send a Label PhotoWe can review a clear label photo when identification is uncertain.
ORDERING PROCESS
From RFQ to Dispatch
1Submit Part Number2Verify Product Identity3Confirm Stock & Condition4Issue Quotation5Dispatch & Tracking
PRODUCT FAQ
Frequently Asked Questions
What type of wire terminals are on the 1794-TB3GS?
The base uses spring clamp terminals. They accommodate wire sizes ranging from 0.34 to 3.3 mm².
What are the voltage ratings for this terminal base unit?
The nominal rating is 24 V AC/DC. Maximum continuous supply voltage is 31.2 V AC/DC. Isolation is 50 V.
How many connection terminals does the unit provide?
The unit features 36 I/O terminals. It also provides 2 common terminals and 2 voltage terminals.
What is the mounting method for the Allen-Bradley 1794-TB3GS?
The unit mounts directly onto a standard DIN rail. It features an open-style IP20 rated housing.
