PRODUCT INFORMATION
Product Overview

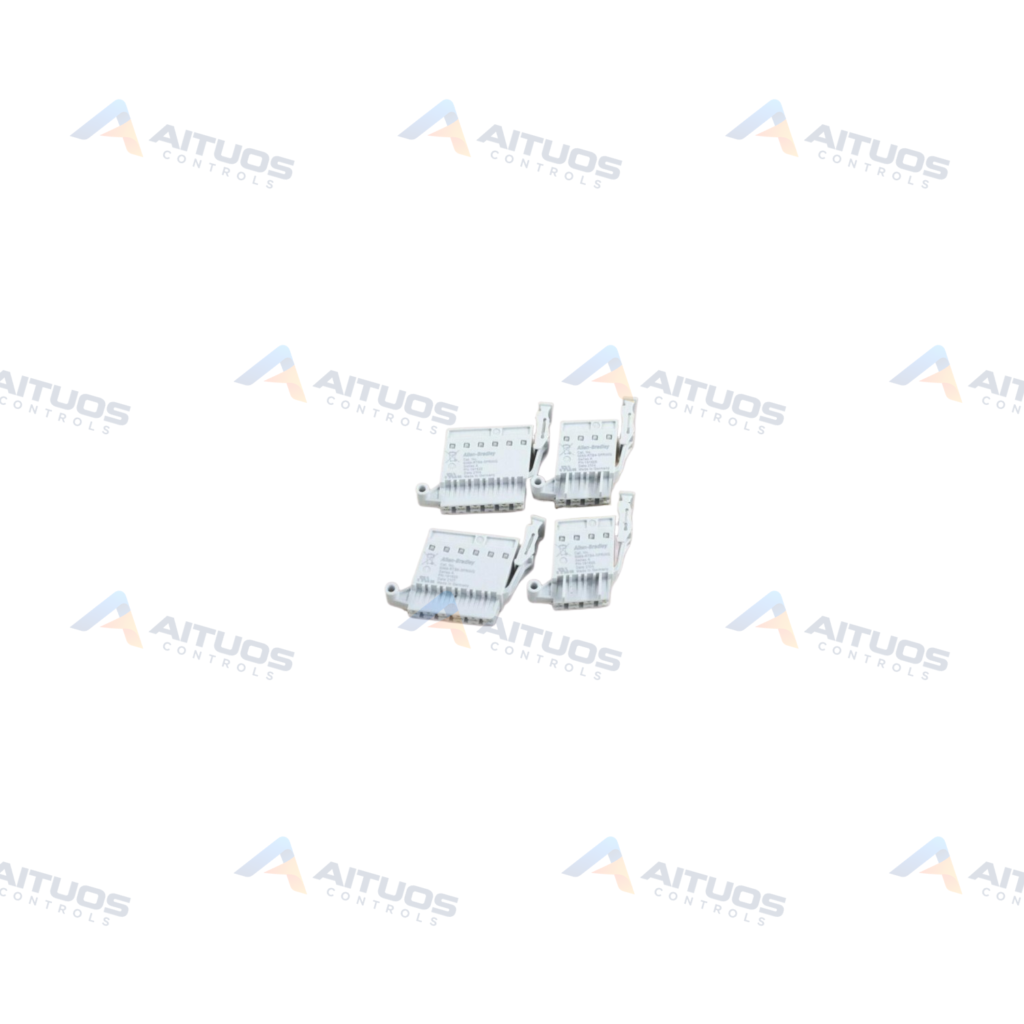

The Allen-Bradley 5069-RTB64-SPRING is a CompactLogix removable terminal block kit designed for industrial automation systems. This kit includes both a 6-pin and a 4-pin spring-clamp connector assembly. It provides module power and sensor-actuator power connections. The hardware mounts to CompactLogix 5380 controllers and 5069-AEN2TR communication adapters. Systems using this kit support architectures with up to 31 Compact I/O expansion modules.
Engineers wire these spring-style terminals using 22 to 16 AWG solid or stranded copper conductors. Each conductor requires a stripped insulation length of 10 millimeters. The assembly features an open-style enclosure rated for an operating temperature span of 0 to 60 degrees Celsius. In addition, the kit carries a T4 temperature code designation under North American, ATEX, and IECEx standards.
TECHNICAL DATA
Technical Specifications
| Parameter | Specification |
|---|
| Category | PLCs |
|---|
| UPC | 887172727023 |
|---|
| Weight | 0.56 lbs (0.26 kg) |
|---|
| Module Type | Power Terminal RTB |
|---|
| Number of Pins | 4 and 6 Pins |
|---|
| Number of Outputs | 4 Form C (SPDT) |
|---|
| Output Voltage Range | 5-264 Volts AC or 5-125 Volts DC |
|---|
| Power Dissipation | 2.6 Watts |
|---|
| Enclosure Type | None (Open Style) |
|---|
| CIP Sync Supported | Yes |
|---|
| Pattern Matching Supported | Yes |
|---|
TECHNICAL INFORMATION
Features
- Supplied as a kit containing both 5069-RTB6-SPRING and 5069-RTB4-SPRING removable terminal blocks.
- Provides spring-clamp connections for MOD power and SA power distribution.
- Supports wire sizes from 0.5 to 1.5 mm sq (22 to 16 AWG) solid or stranded copper.
- Rated for operation across an ambient temperature range of 0 to 60 degrees Celsius.
- Designed to support CompactLogix configurations containing up to 31 local 5069 I/O modules.
TECHNICAL INFORMATION
Applications
- Power distribution wiring for Allen-Bradley CompactLogix 5380 controller installations.
- MOD and SA power termination on 5069-AEN2TR distributed EtherNet/IP adapter stations.
- CompactLogix 5069 I/O chassis deployment in hazardous environments requiring T4 temperature codes.
TECHNICAL INFORMATION
Connections / Interfaces
- One 6-pin spring-clamp removable terminal block for power distribution.
- One 4-pin spring-clamp removable terminal block for power distribution.
- Spring-action wire retention terminals accepting 22 to 16 AWG bare copper leads.
TECHNICAL INFORMATION
Installation Guidelines
- Strip wire insulation to a length of 10 mm (0.39 in) before insertion.
- Align the terminal block hinges with the adapter module housing.
- Press the terminal block inward until two distinct clicks confirm complete engagement.
- Verify proper wire seating before applying power to the controller or adapter.
TECHNICAL INFORMATION
Configuration Guidelines
- Confirm that system power requirements remain within rated voltage and current limits.
- Ensure total current distribution does not exceed adapter module backplane specifications.
TECHNICAL INFORMATION
Compatibility
- Allen-Bradley CompactLogix 5380 controllers.
- Allen-Bradley 5069-AEN2TR EtherNet/IP communication adapter modules.
- Allen-Bradley Compact 5069 I/O expansion modules up to 31 units.
TECHNICAL INFORMATION
Lifecycle / Replacement Information
- Available as a factory spare part kit for maintaining 5069 power interface assemblies.
- Individual components inside the kit correspond to 5069-RTB6-SPRING and 5069-RTB4-SPRING.
TECHNICAL INFORMATION
Compliance and Certifications
- North American hazardous location certification with T4 temperature code.
- ATEX certification with T4 temperature code.
- IECEx certification with T4 temperature code.
TECHNICAL RESOURCES
Documentation
COMPATIBILITY
Compatibility & Replacement
COMPATIBLE MODELSAllen-Bradley CompactLogix 5380 controllers. Allen-Bradley 5069-AEN2TR EtherNet/IP communication adapter modules. Allen-Bradley Compact 5069 I/O expansion modules up to 31 units.
Verify compatibility against the exact Part Number, revision and manufacturer documentation before ordering.
PART VERIFICATION
Before You Order
Industrial automation parts can share similar model names, suffixes and revisions. Confirm the complete manufacturer Part Number before purchase.
01Check Part NumberMatch the complete ordering code on the existing unit.
02Confirm RevisionCheck suffix, hardware or firmware when applicable.
03Send a Label PhotoWe can review a clear label photo when identification is uncertain.
ORDERING PROCESS
From RFQ to Dispatch
1Submit Part Number2Verify Product Identity3Confirm Stock & Condition4Issue Quotation5Dispatch & Tracking
PRODUCT FAQ
Frequently Asked Questions
What components are included in the 5069-RTB64-SPRING kit?
The kit includes one 6-pin spring terminal block (5069-RTB6-SPRING) and one 4-pin spring terminal block (5069-RTB4-SPRING).
Which modules work with the 5069-RTB64-SPRING terminal block?
It is designed for Allen-Bradley CompactLogix 5380 controllers and 5069-AEN2TR EtherNet/IP adapter modules.
What conductor sizes can be connected to this terminal block?
The spring-clamp terminals accept 0.5 to 1.5 mm sq (22 to 16 AWG) solid or stranded copper wire.
