Product Overview

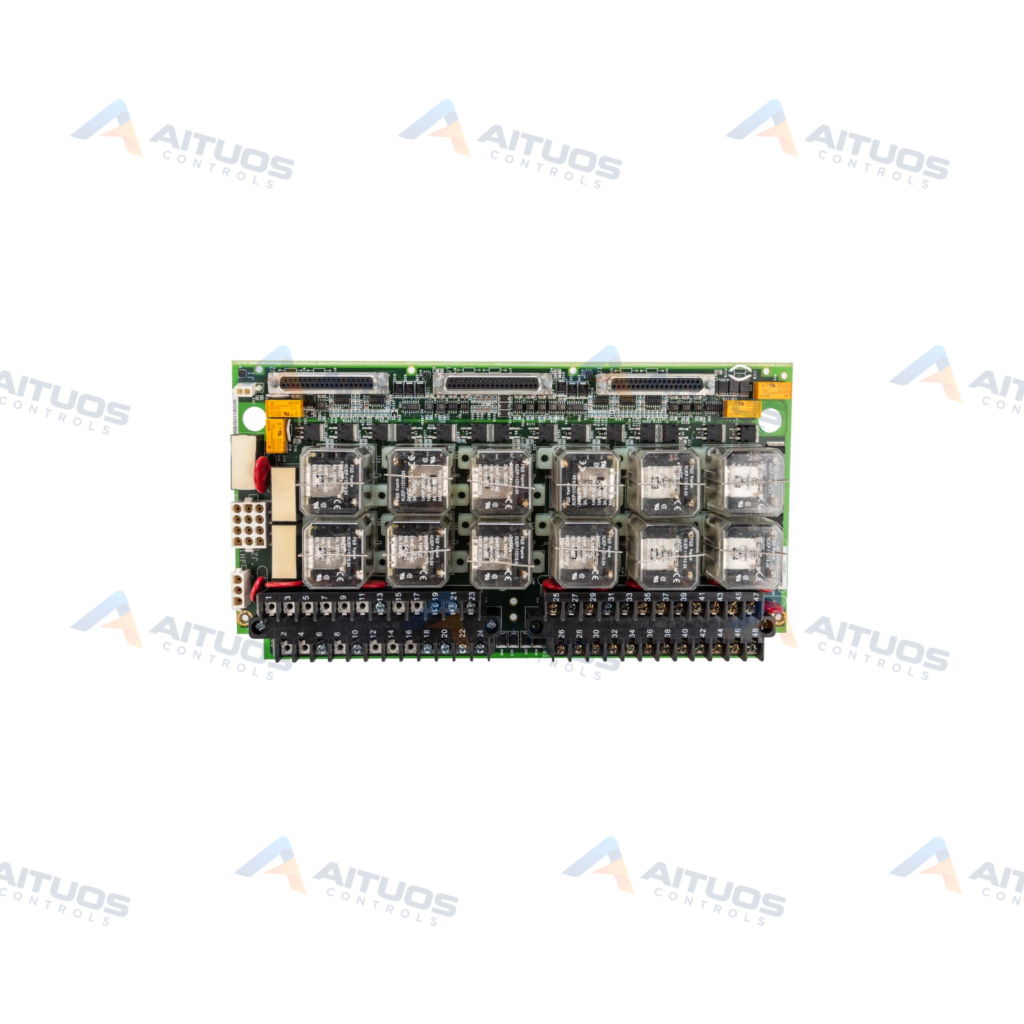

The General Electric IS200TREGH1BDB is a Trip Emergency Termination Board manufactured for the Mark VI Turbine Control System series. This board assembly incorporates twelve large relays or contactors arranged in pairs. It also integrates ten red metal oxide varistors designed to provide overvoltage suppression. The circuit board includes four large yellow capacitors and reflects a standard normal assembly design.
For physical connections, the board features two long black terminal blocks. Each terminal block contains twenty-four silver terminals, providing forty-eight total screw connection points. Three jack connector ports with small pin ports support interconnectivity within the control system enclosure. The unit measures 30.5 cm by 22.9 cm by 5.1 cm and weighs 500 grams.
TECHNICAL DATA
Technical Specifications
| Parameter | Specification |
|---|
| Product No. | IS200TREGH1BDB |
|---|
| Product Origin | USA |
|---|
| Weight | 500g |
|---|
| Length | 30.5 cm (12 inches) |
|---|
| Width | 22.9 cm (9 inches) |
|---|
| Height | 5.1 cm (2 inches) |
|---|
| Terminal Blocks | 2 long black terminal blocks with 24 silver terminals each |
|---|
| MOVs (Metal Oxide Varistors) | 10 red components |
|---|
| Relays/Contactors | 12 large relays/contactors, arranged in pairs |
|---|
| Capacitors | 4 large yellow capacitors |
|---|
| Connector Ports | 3 jack connector ports with small pin ports |
|---|
| Revision Total | 3 Revisions |
|---|
| Assembly Type | Normal Assembly |
|---|
TECHNICAL INFORMATION
Features
- Twelve large relays or contactors arranged in six functional pairs
- Ten red metal oxide varistors for voltage transient protection
- Two long black terminal blocks with 24 silver terminals each
- Three jack connector ports equipped with small pin ports
- Four large yellow capacitors installed on the board
- Standard normal assembly construction with three total revisions
TECHNICAL INFORMATION
Applications
- General Electric Mark VI Turbine Control System emergency trip circuits
- Emergency stop and trip termination assemblies in Mark VI systems
TECHNICAL INFORMATION
Connections / Interfaces
- Two black terminal blocks provide 48 total silver screw terminals for field wiring.
- Three jack connector ports with small pin ports support internal system cabling.
TECHNICAL INFORMATION
Compatibility
- Compatible with General Electric Mark VI Turbine Control Systems.
COMPATIBILITY
Compatibility & Replacement
COMPATIBLE MODELSCompatible with General Electric Mark VI Turbine Control Systems.
Verify compatibility against the exact Part Number, revision and manufacturer documentation before ordering.
PART VERIFICATION
Before You Order
Industrial automation parts can share similar model names, suffixes and revisions. Confirm the complete manufacturer Part Number before purchase.
01Check Part NumberMatch the complete ordering code on the existing unit.
02Confirm RevisionCheck suffix, hardware or firmware when applicable.
03Send a Label PhotoWe can review a clear label photo when identification is uncertain.
ORDERING PROCESS
From RFQ to Dispatch
1Submit Part Number2Verify Product Identity3Confirm Stock & Condition4Issue Quotation5Dispatch & Tracking
PRODUCT FAQ
Frequently Asked Questions
What is the primary function of the IS200TREGH1BDB termination board?
The IS200TREGH1BDB serves as a trip emergency termination board for General Electric Mark VI turbine control systems.
What physical connection points are integrated on the IS200TREGH1BDB?
The board includes two 24-point terminal blocks with 48 silver terminals and three jack connector pin ports.
What is the reference market price for the IS200TREGH1BDB?
Observed market reference pricing is approximately 1127.00 USD for refurbished units. This figure is indicative market reference pricing only and is not a final quotation.
