PRODUCT INFORMATION
Product Overview

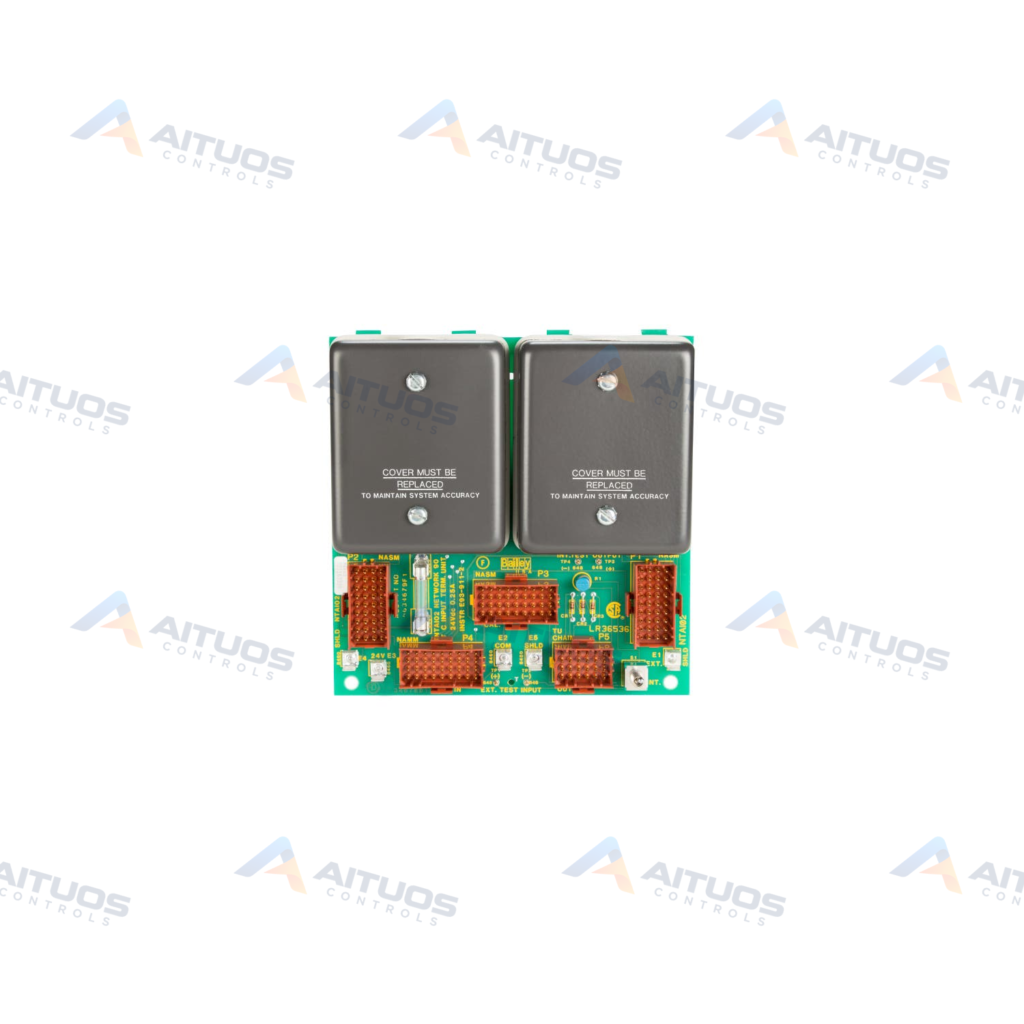

The ABB NTAI02 is an analog input termination unit designed for the Bailey INFI 90 distributed control system. It provides connection interfaces for field instrumentation directly to system processing hardware. The assembly routes analog signals securely into the control architecture. It handles sixteen thermocouple or millivolt inputs per unit. This unit supports stable field signal management across process automation environments.
The unit operates from a 24 V DC power supply source. Circuit protection includes an integrated 0.25 A fuse rated for 250 V service. The module maintains operation across an operating temperature range of –40 to 70 °C. These environmental specifications allow deployment in challenging industrial plant control cabinets. Plant technicians use this module to terminate low-level analog wiring cleanly.
TECHNICAL DATA
Technical Specifications
| Parameter | Specification |
|---|
| Number of Input Channels | 16 thermocouple/millivolt inputs per unit |
|---|
| Power Supply | 24 V DC |
|---|
| Fuse Rating | 0.25 A fuse, 250 V rating |
|---|
| Operating Temperature Range | –40 – 70 °C (–40 – 158 °F) |
|---|
TECHNICAL INFORMATION
Features
- Supports sixteen thermocouple or millivolt inputs per unit.
- Operates on a 24 V DC power supply.
- Protected by an integrated 0.25 A fuse rated for 250 V.
- Operates in ambient temperatures from –40 °C to 70 °C.
- Engineered for integration into Bailey INFI 90 architectures.
TECHNICAL INFORMATION
Applications
- Bailey INFI 90 distributed control system field signal termination.
- Thermocouple and millivolt sensor signal wiring management.
- Industrial temperature monitoring and data acquisition cabinets.
TECHNICAL INFORMATION
Connections / Interfaces
- Accepts up to 16 low-level thermocouple or millivolt field signal inputs.
- Provides dedicated wiring termination points for system analog input modules.
TECHNICAL INFORMATION
Installation Guidelines
- Verify the 24 V DC power supply is de-energized before connecting wiring.
- Ensure field wiring adheres to thermocouple and millivolt shielding practices.
- Verify cabinet temperature stays within –40 °C to 70 °C during operation.
TECHNICAL INFORMATION
Configuration Guidelines
- Verify input channel assignments correspond with matching control system software configuration.
- Confirm proper fuse installation with a 0.25 A, 250 V replacement rating.
TECHNICAL INFORMATION
Compatibility
- Compatible with ABB Bailey INFI 90 control platforms.
- Interfaces with standard industrial thermocouple and millivolt field devices.
COMPATIBILITY
Compatibility & Replacement
COMPATIBLE MODELSCompatible with ABB Bailey INFI 90 control platforms. Interfaces with standard industrial thermocouple and millivolt field devices.
Verify compatibility against the exact Part Number, revision and manufacturer documentation before ordering.
PART VERIFICATION
Before You Order
Industrial automation parts can share similar model names, suffixes and revisions. Confirm the complete manufacturer Part Number before purchase.
01Check Part NumberMatch the complete ordering code on the existing unit.
02Confirm RevisionCheck suffix, hardware or firmware when applicable.
03Send a Label PhotoWe can review a clear label photo when identification is uncertain.
ORDERING PROCESS
From RFQ to Dispatch
1Submit Part Number2Verify Product Identity3Confirm Stock & Condition4Issue Quotation5Dispatch & Tracking
PRODUCT FAQ
Frequently Asked Questions
What is the primary function of the ABB NTAI02?
The ABB NTAI02 terminates up to sixteen thermocouple or millivolt analog field inputs for Bailey INFI 90 systems.
What are the power and fuse ratings for the NTAI02 unit?
The unit operates on 24 V DC and incorporates a 0.25 A fuse rated at 250 V.
What is the operating temperature range of the NTAI02?
The module is rated to operate between –40 °C and 70 °C (–40 °F to 158 °F).
What is the market reference price for the ABB NTAI02?
Observed market reference pricing spans between $85.00 and $210.00 USD based on item condition. These figures represent indicative market reference pricing only and are not a final quotation.
