PRODUCT INFORMATION
Product Overview

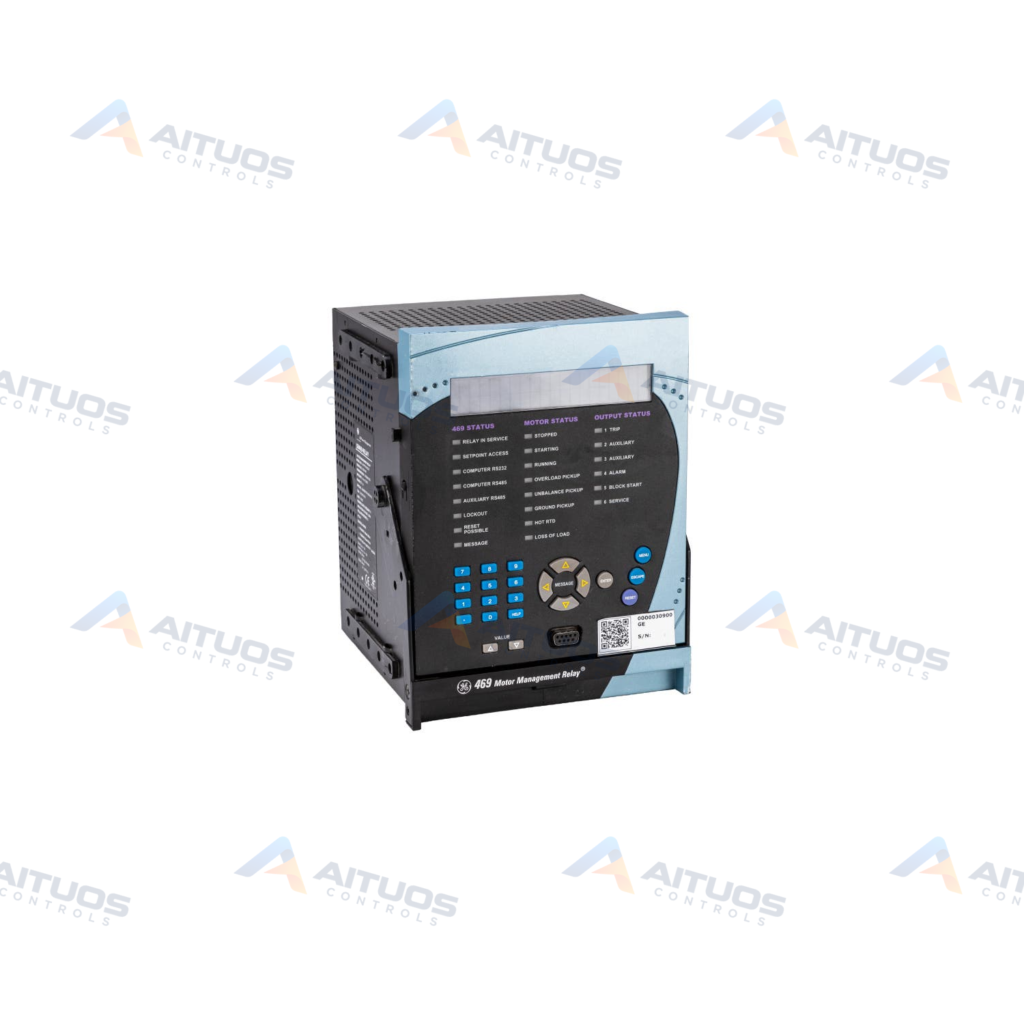

The General Electric 469-P5-HI-A20-T-H is a Multilin Motor Management Relay for medium and large industrial motors. It provides integrated management and comprehensive protective elements. The relay accepts 5 A phase CT secondaries for precise current sensing. Its high control power supply operates across wide alternating and direct voltage ranges. The internal circuit assemblies feature conformal coating for harsh chemical protection.
The unit includes four 4 to 20 mA assignable analog outputs. Dedicated communication facilities feature a front RS-232 port, two rear RS-485 ports, and a 10Base-T Ethernet port. The Ethernet connection communicates using Modbus RTU over TCP/IP protocol. Users configure protective trips and monitoring parameters through EnerVista 469 Setup software. The physical drawout design allows straightforward maintenance and case extraction.
TECHNICAL DATA
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer (OEM) | GE Multilin, GE Grid Solutions |
|---|
| # of Ports | 3 (Front RS232, Rear Com RS485 and Aux RS485) |
|---|
| Analog Outputs | Four (4) 4 to 20 mA analog outputs |
|---|
| Environment Protection | Harsh (chemical) environment conformal coating |
|---|
| Features | Ethernet (10Base-T) |
|---|
| Phase Current Inputs | 5 A phase CT secondaries |
|---|
| Software | EnerVista 469 Setup |
|---|
| Weight Before Packaging | Less than 15 lbs |
|---|
| Country of Manufacture | Made In Canada |
|---|
| Drawout Case | Included upon request |
|---|
TECHNICAL INFORMATION
Features
- Accepts 5 A phase current transformer secondaries.
- Integrated high control power supply rated for AC and DC operation.
- Conformal coating protection against harsh environmental contaminants.
- Four configurable 4 to 20 mA analog output channels.
- Rear RJ45 10Base-T Ethernet interface operating Modbus RTU over TCP/IP.
- Serial interfaces including front RS-232 plus rear communication and auxiliary RS-485 ports.
- Protective monitoring for mechanical jam, torque, undervoltage, overvoltage, and current unbalance.
TECHNICAL INFORMATION
Applications
- Protection and management of medium and large AC electric motors.
- Harsh and chemically aggressive industrial processing plant environments.
- Continuous motor process monitoring using automated SCADA and DCS networks.
TECHNICAL INFORMATION
Connections / Interfaces
- One front-panel RS-232 serial communication port.
- Two rear RS-485 serial communication terminals designated Com and Aux.
- One rear 10Base-T RJ45 Ethernet communication port.
- Terminal connections for four 4 to 20 mA analog outputs.
- Dedicated terminals for 5 A phase CT secondary inputs.
TECHNICAL INFORMATION
Installation Guidelines
- Mount the unit securely within a compatible Multilin drawout case.
- Confirm the rear RJ45 network cable is disconnected before removing the relay chassis.
- Chassis extraction is permissible without cable disconnection if network lead exceeds 16 inches.
- Verify supply voltage matches the high control power rating prior to energizing.
TECHNICAL INFORMATION
Configuration Guidelines
- Configure operating parameters and trip limits using EnerVista 469 Setup software.
- Establish Modbus RTU over TCP/IP addressing for network supervision.
- Set trip thresholds and time delays for torque and voltage fluctuations.
- Scale the four 4 to 20 mA analog output channels for target telemetry.
TECHNICAL INFORMATION
Compatibility
- Compatible with standard 5 A CT secondary instrumentation circuits.
- Integrates with SCADA systems using Modbus RTU over TCP/IP.
- Configurable with GE EnerVista 469 Setup software utilities.
COMPATIBILITY
Compatibility & Replacement
COMPATIBLE MODELSCompatible with standard 5 A CT secondary instrumentation circuits. Integrates with SCADA systems using Modbus RTU over TCP/IP. Configurable with GE EnerVista 469 Setup software utilities.
Verify compatibility against the exact Part Number, revision and manufacturer documentation before ordering.
PART VERIFICATION
Before You Order
Industrial automation parts can share similar model names, suffixes and revisions. Confirm the complete manufacturer Part Number before purchase.
01Check Part NumberMatch the complete ordering code on the existing unit.
02Confirm RevisionCheck suffix, hardware or firmware when applicable.
03Send a Label PhotoWe can review a clear label photo when identification is uncertain.
ORDERING PROCESS
From RFQ to Dispatch
1Submit Part Number2Verify Product Identity3Confirm Stock & Condition4Issue Quotation5Dispatch & Tracking
PRODUCT FAQ
Frequently Asked Questions
What control power voltage does the 469-P5-HI-A20-T-H accept?
This unit accepts 90 to 300 VDC or 70 to 265 VAC at 48 to 62 Hz.
What is the meaning of the H suffix in the part number?
The H designation specifies conformal coating on internal boards for harsh chemical environment protection.
What precaution is required when removing the relay from its case?
Ensure the rear RJ45 cable is cleanly disconnected unless the cable length exceeds 16 inches.
